JSG07WB Brushless Diaphragm Liquid Pump 10 Bar 1 L/min
Options to discuss with our team
- Voltage
- 12V, 24V
Compact brushless diaphragm liquid pump for water purification, beverage equipment, spraying systems, and OEM liquid transfer.
Get More from Your Pump Inquiry
Planning a batch order or OEM project? Request volume pricing and pump selection advice.
- Free pump selection guidance
- Volume pricing review
- OEM customization options
Start with your application. Share the flow, working pressure or vacuum, and voltage you know; estimates are welcome.
For a single-pump order, select the required voltage and review the shipping options at checkout.
For orders of more than one pump, bulk or OEM projects, remote areas or outlying islands, or destinations without a shipping option, request a freight quote before payment.
For an order quote, include the model, quantity, destination country and postcode when available. Ask us to confirm availability and dispatch timing for your order.
- Up to 10 Bar Maximum Pressure
- ≥0.5 L/min at 5 Bar
- 12V / 24V Brushless Options
Product Overview

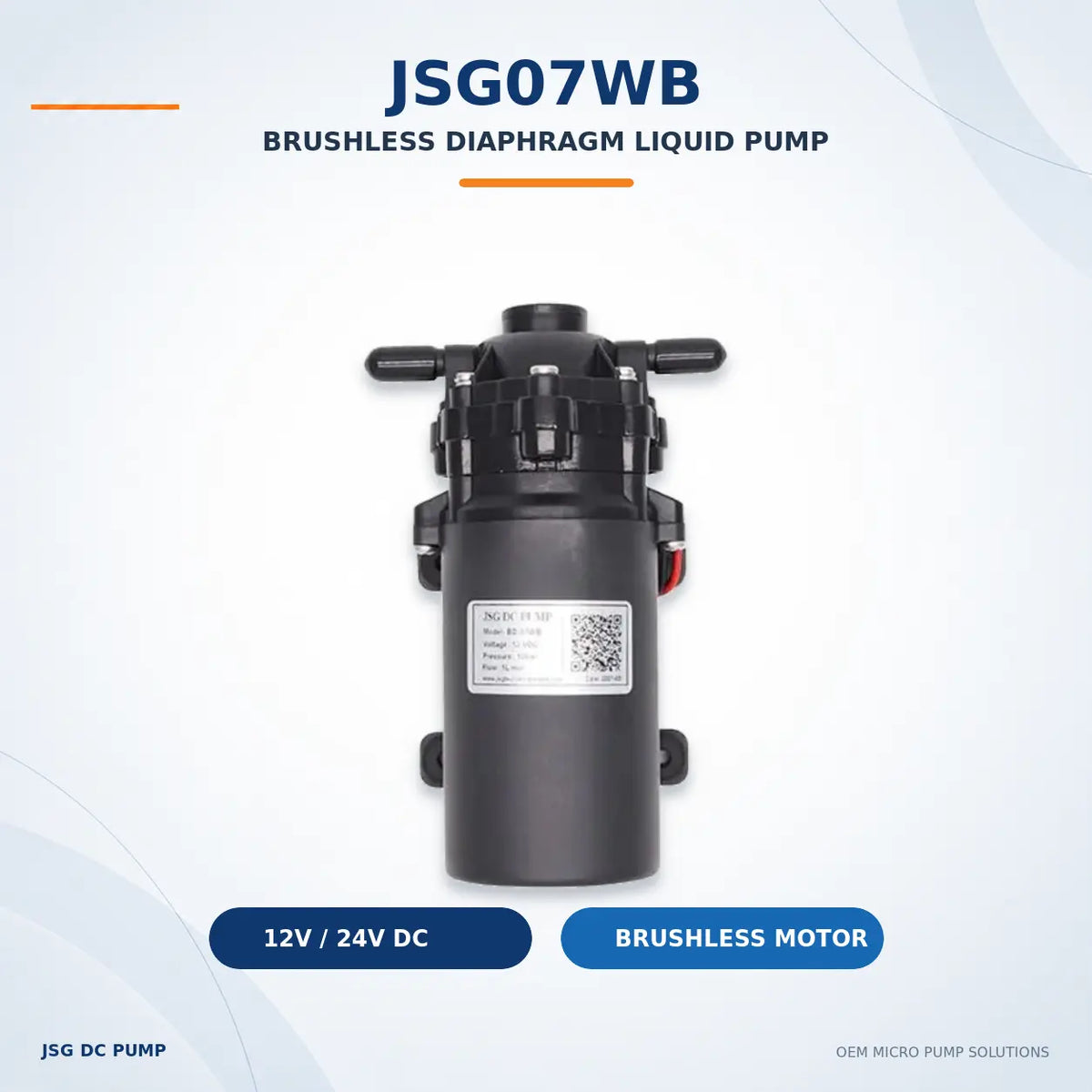

The JSG07WB is a compact brushless diaphragm liquid pump designed for clean-water pressurization and OEM liquid-transfer systems.
Key Features
10 Bar Maximum Pressure
Designed for compact high-pressure water and liquid systems.
≥0.5 L/min at 5 Bar
Provides a useful working point for real liquid circuits.
12V / 24V Options
Choose the voltage according to your equipment power supply.
Brushless DC Motor
Reduces brush wear and provides up to 3,000 hours of service life.
EPDM / Optional FKM
Standard EPDM is suitable for clean water, while FKM is available for applications requiring different chemical or temperature resistance.
Self-Priming & Oil-Free
Suitable for integration into clean liquid-transfer systems.

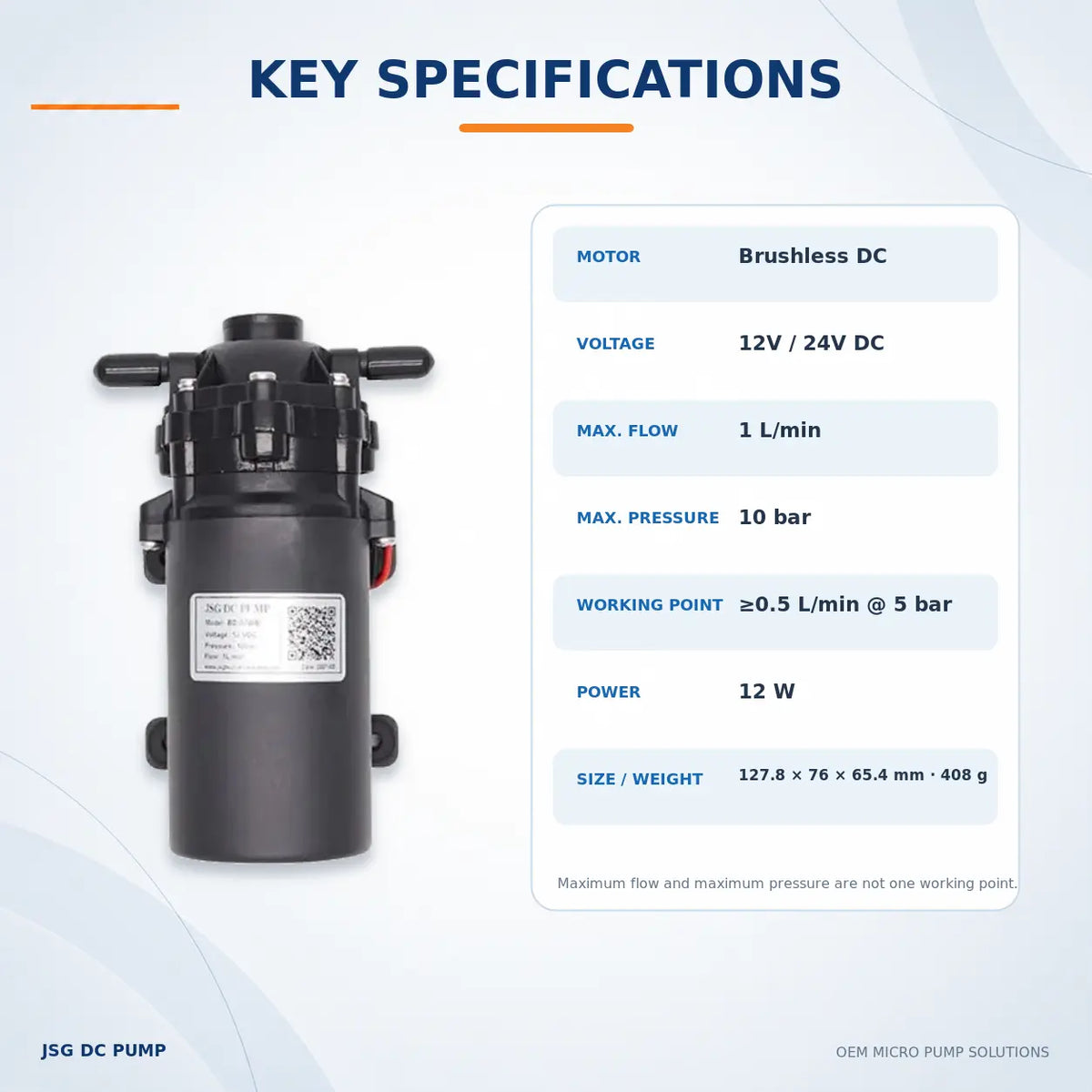

Specifications
| Model | JSG07WB |
| Pump Type | Brushless Diaphragm Liquid Pump |
| Voltage Options | DC 12V / DC 24V |
| Maximum Flow | 1 L/min |
| Maximum Pressure | 10 bar |
| Working Flow | ≥0.5 L/min @ 5 bar |
| Power | 12W |
| Noise | 50 dB at 30 cm |
| Motor | Brushless DC |
| Service Life | Up to 3,000 hours |
| Dimensions | Approx. 127.8 × 76 × 65.4 mm |
| Net Weight | 520 g |
| Inlet Diameter | Φ6.5 mm |
| Outlet Diameter | Φ4.0 mm |
| Standard Material | EPDM |
| Optional Material | FKM |
| Media | Water / Compatible Mild Liquids |
Dimensions
Dimensional drawing of the JSG07WB brushless diaphragm liquid pump for OEM installation planning.

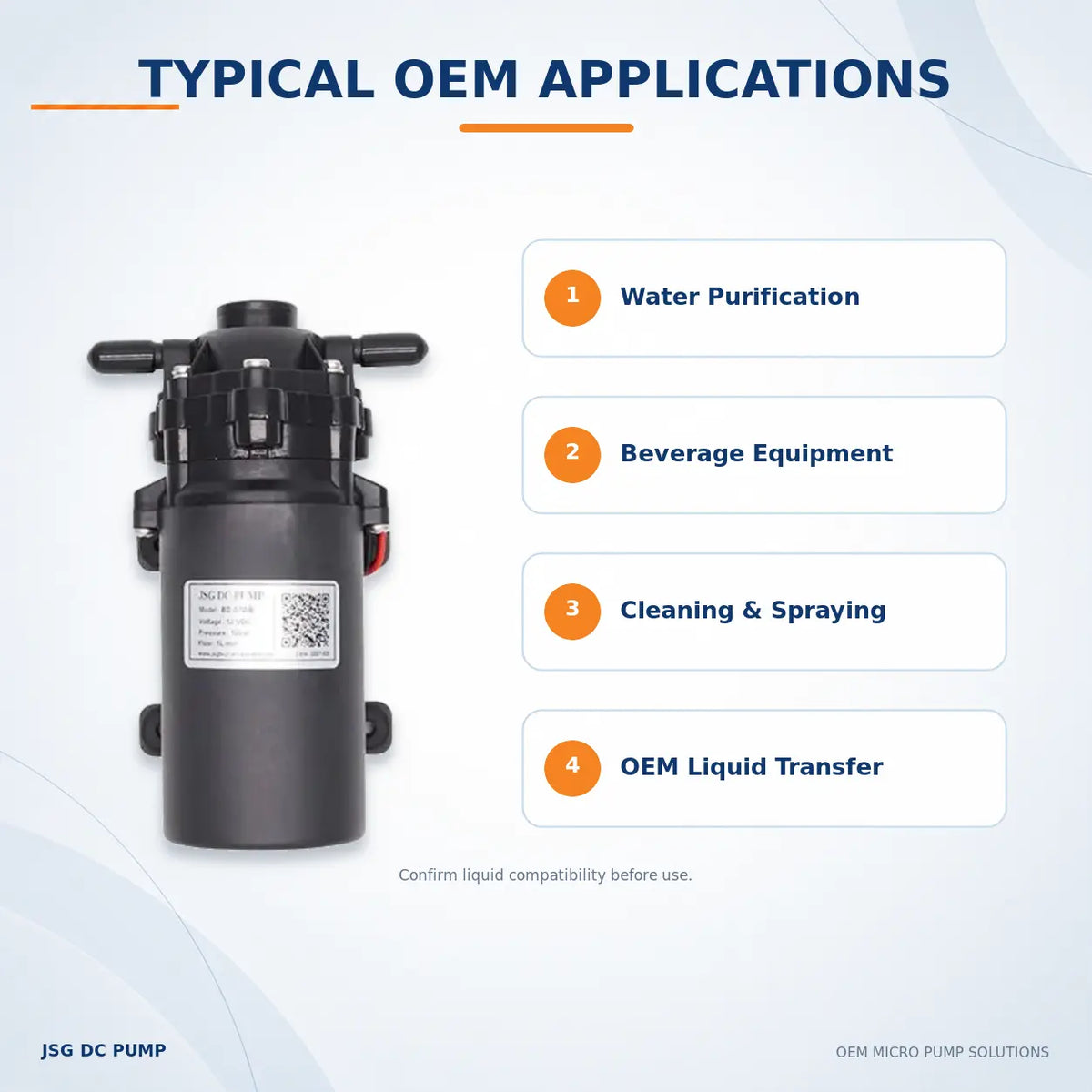

Typical Applications
Water Purification Systems
Suitable for RO booster systems, filtration equipment, and compact pressurized water circuits.
Beverage Equipment
Can be integrated into water dispensing and beverage delivery systems after liquid compatibility is confirmed.
Cleaning & Spraying Systems
Suitable for compact cleaning, spraying, rinsing, and liquid-delivery modules.
OEM Liquid Transfer
Designed for customized equipment requiring compact size, high pressure, and brushless motor operation.
Material Options
EPDM
Recommended as the standard configuration for clean water and compatible mild water-based liquids.
FKM
Available when different chemical or temperature resistance is required.
Liquid compatibility should always be confirmed according to the actual liquid composition, concentration, temperature, pressure, and operating time.
Performance Note
The 1 L/min maximum flow and 10 bar maximum pressure occur under different operating conditions. Do not assume the pump provides 1 L/min at 10 bar.

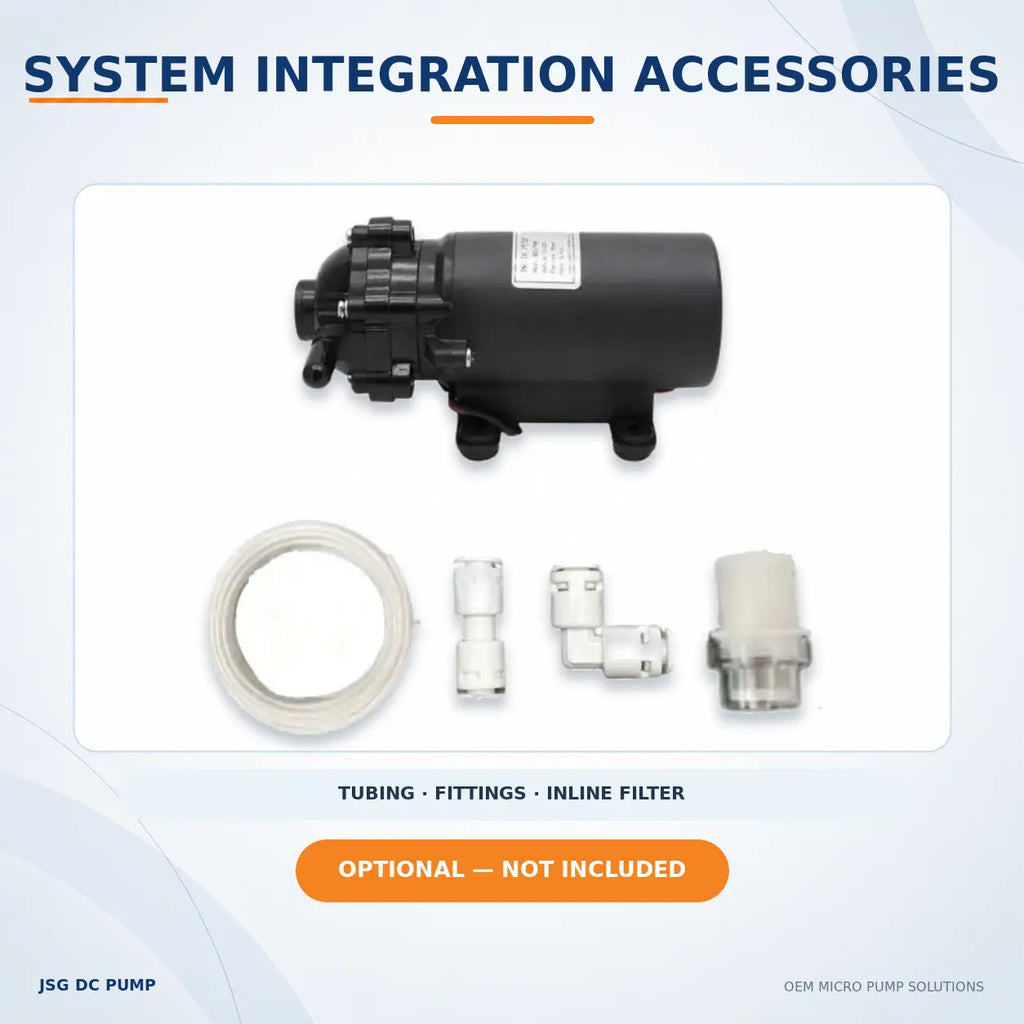

For system selection, use the required flow at the actual working pressure. Tubing, filters, valves, connectors, nozzles, and liquid viscosity can all reduce the final working flow.
Package Includes
1 × JSG07WB Brushless Diaphragm Liquid Pump
Select 12V or 24V before ordering.
For OEM projects or sample testing, contact us with your required pressure, flow, voltage, liquid type, and duty cycle.
