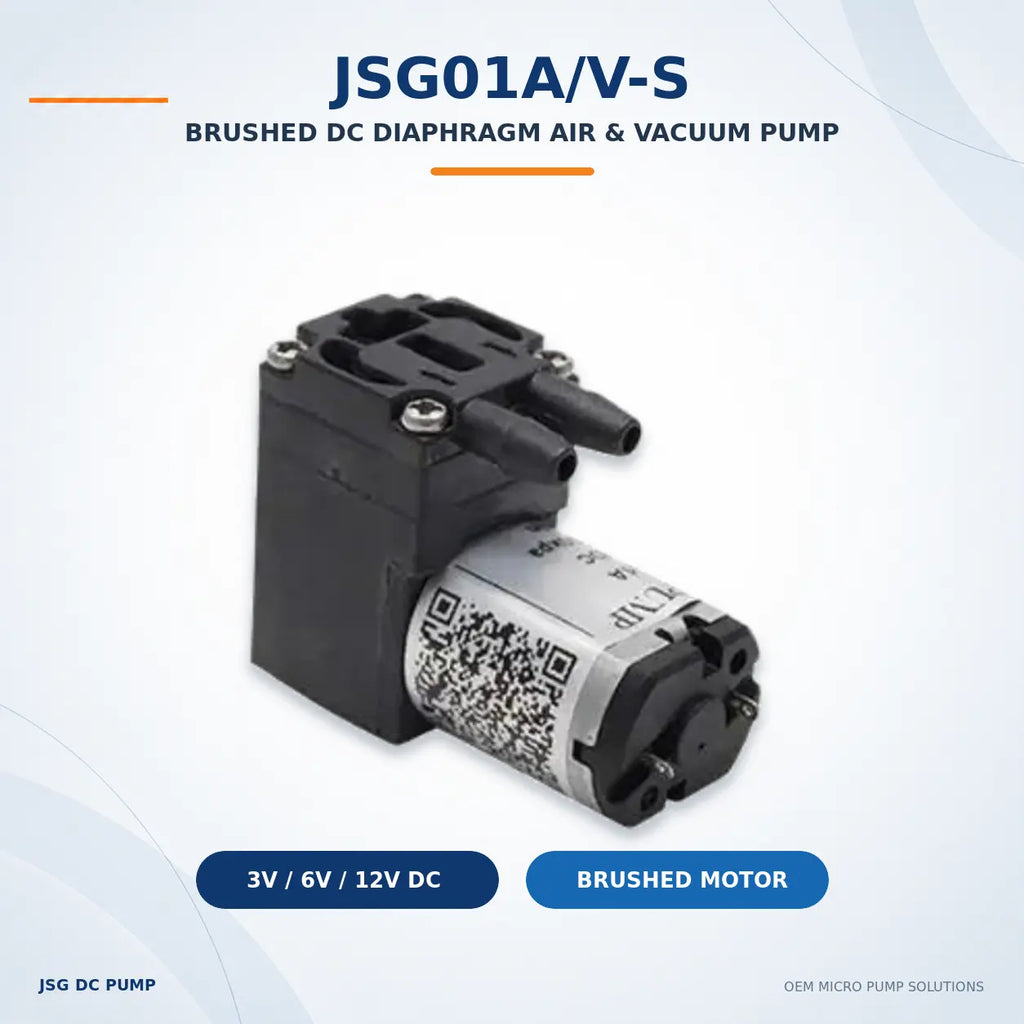

JSG01A/V-S 3V/6V/12V Brushed Diaphragm Air & Vacuum Pump
Options to discuss with our team
- Function
- Pressure, Vacuum
- Voltage
- 3V, 6V, 12V
Compact brushed diaphragm pump for pressure or vacuum in portable electronics and OEM devices. Choose the function and rated voltage required.
Get More from Your Pump Inquiry
Planning a batch order or OEM project? Request volume pricing and pump selection advice.
- Free pump selection guidance
- Volume pricing review
- OEM customization options
Order by inquiry: request a quote before payment. We will confirm the product configuration, availability, order pricing and freight for your destination.
Start with your application. Share the flow, working pressure or vacuum, and voltage you know; estimates are welcome. Add your destination country and postcode, plus an estimated quantity if available.

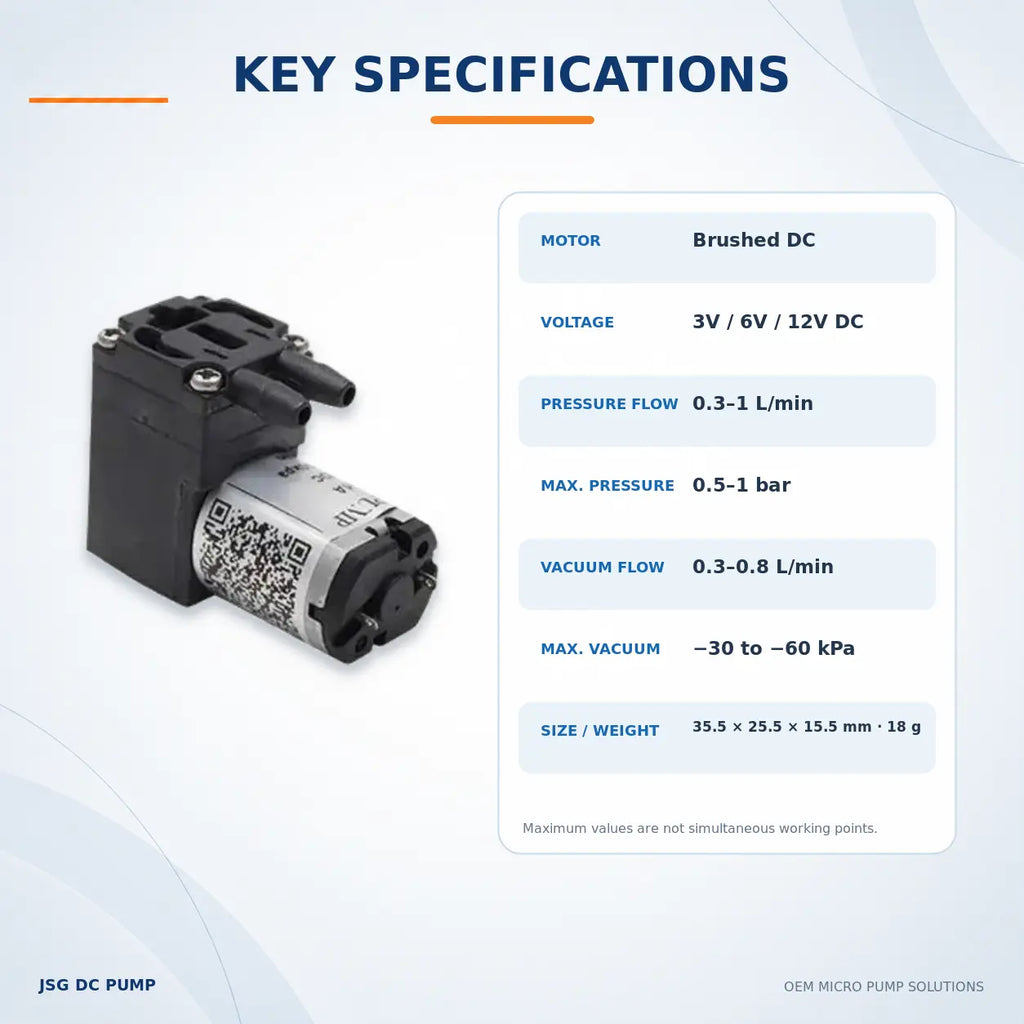

Key Specifications
- Pressure model: JSG01A-S; 0.3–1 L/min; 0.5–1 bar
- Vacuum model: JSG01V-S; 0.3–0.8 L/min; −30 to −60 kPa
- Voltage: 3V / 6V / 12V; Power: 1–2 W
- Size: 35.5 × 25.5 × 15.5 mm; Weight: approx. 18 g
- Noise: 45–60 dB; Service life: approx. 500 hours
- Media: air or clean gas; Wetted materials: EPDM / FKM

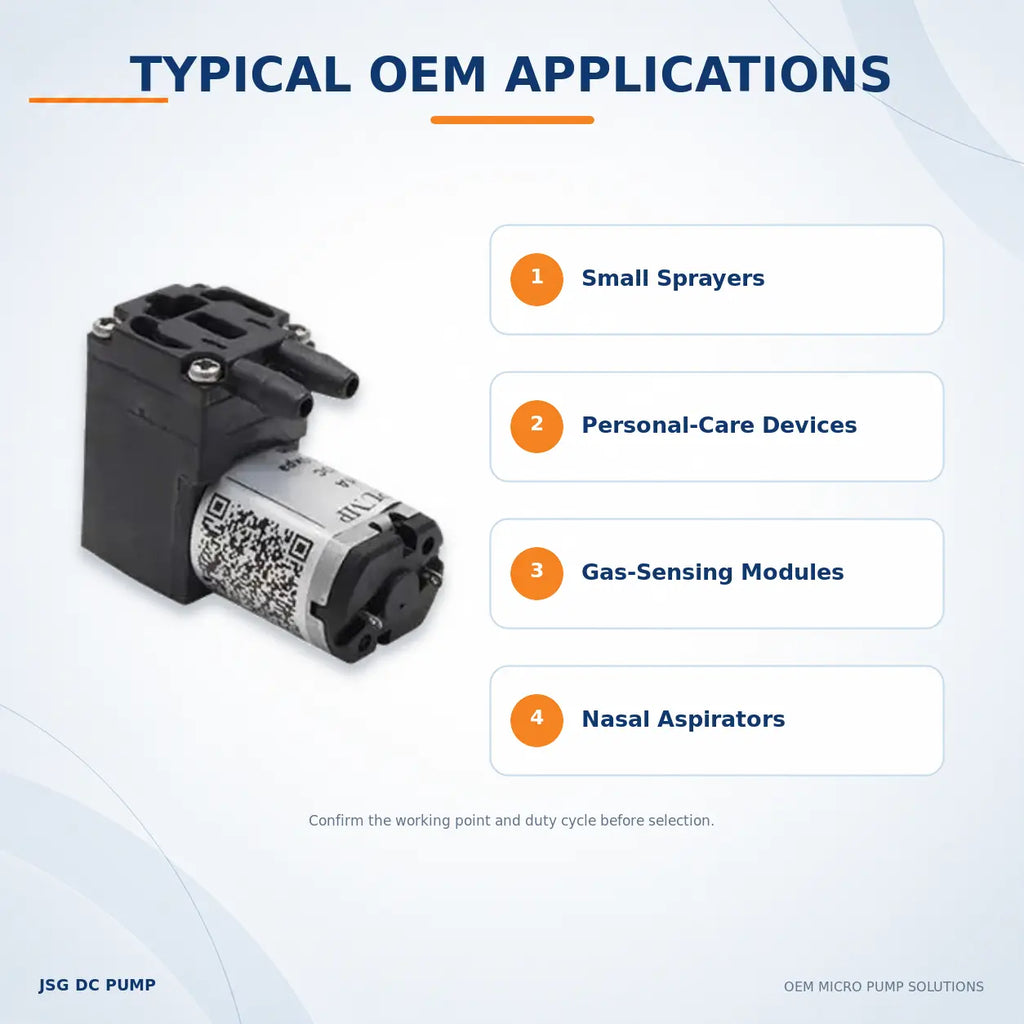

Applications
Personal-care devices, gas-sensing modules, sprayers, nasal aspirators, pocket instruments and compact electronic assemblies.
Note: For intermittent, light-duty operation. Not for liquids. Maximum flow and maximum pressure or vacuum are not simultaneous operating points.

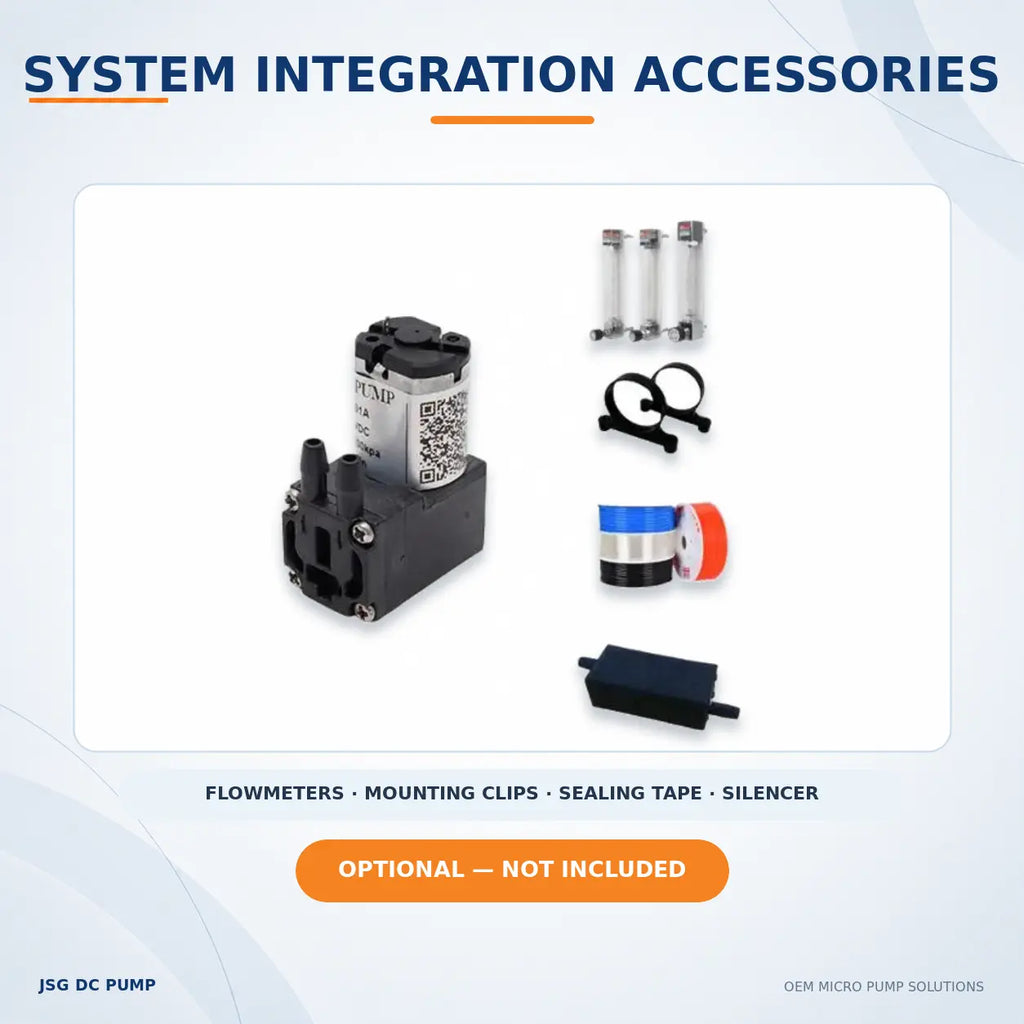

Package: 1 × selected pump. Accessories and power supply are not included.
