5μm Pressure Vacuum Filter for Micro Air Pump and Vacuum Pump
Options to discuss with our team
- Inlet Diameter
- Φ4.0 mm, Φ6.0 mm
Request Pricing & Delivery Advice
Planning an order? Ask our sales team to review pricing, product options and delivery to your destination.
- Volume pricing review
- Product option guidance
- Destination-specific delivery quote
Order by inquiry: request a quote before payment. We will confirm the product configuration, availability, order pricing and freight for your destination.
Tell us which product or option you need and your destination country and postcode. Add an estimated quantity if you have one.
Minimum order quantity: 50 pieces per connection size. Unit price: US$1.00 each.
The JSG 5μm inline air filter is designed for miniature air pump and vacuum pump systems. Installed in the appropriate pressure or vacuum air line, it helps capture fine airborne particles before they reach the pump or downstream pneumatic components. Select a Φ4.0 mm or Φ6.0 mm connection to match your PU tubing.
Key Features
- 5μm filtration rating for airborne dust and fine particles
- Suitable for pressure and vacuum air-line applications

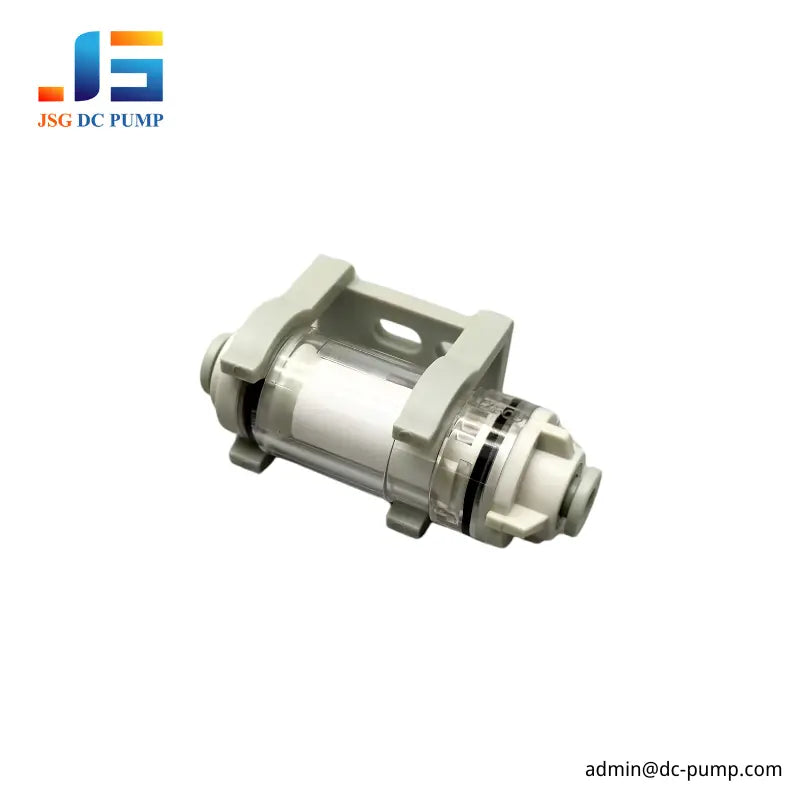

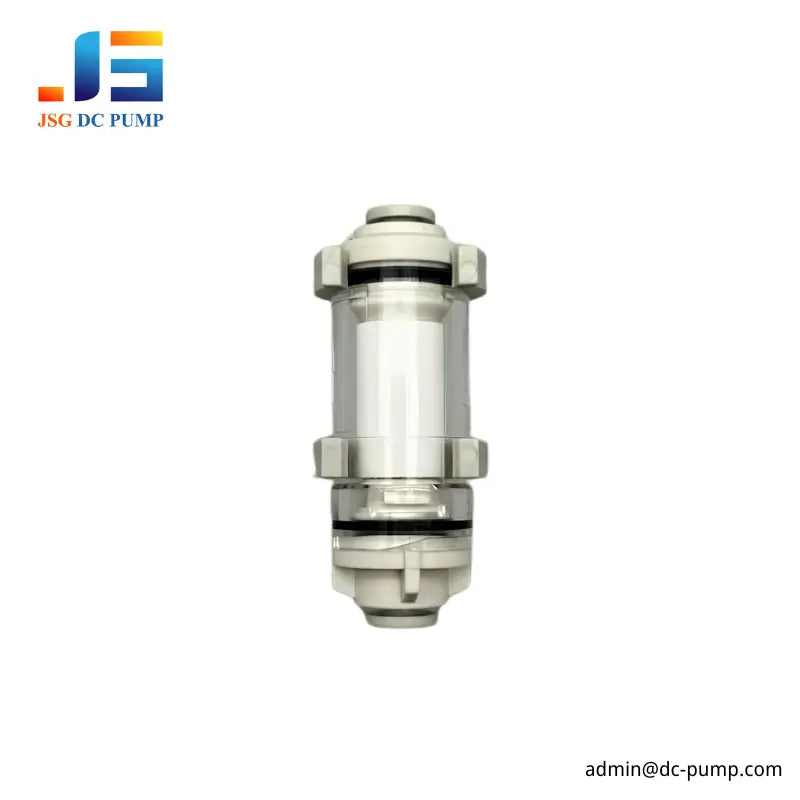

- Transparent housing for easier visual inspection of the filter element
- Compact inline design for integration into small OEM equipment

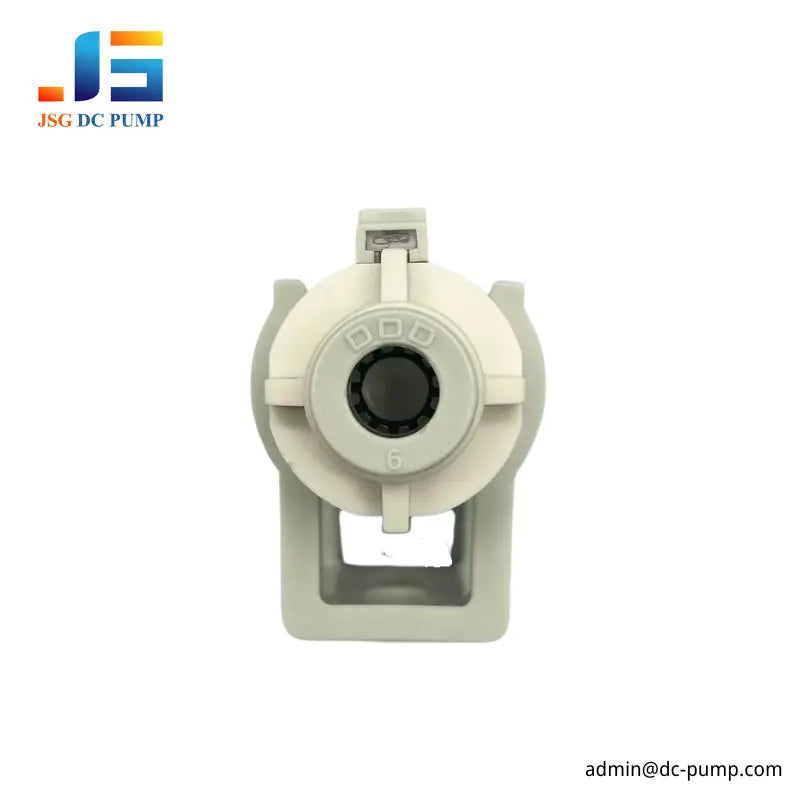

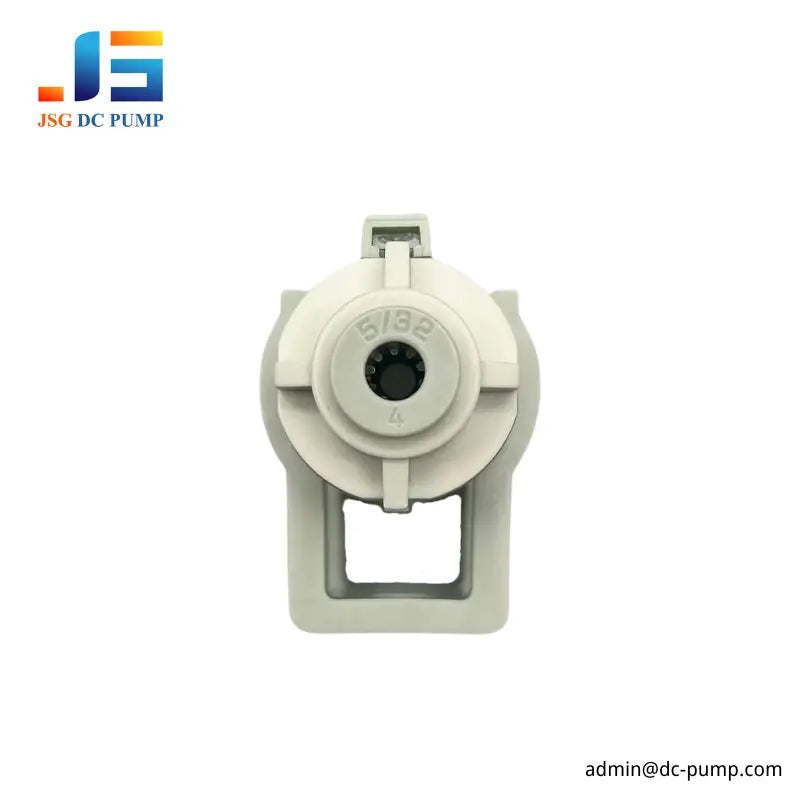

- Available with Φ4.0 mm and Φ6.0 mm connection options
- Designed for use with matching PU tubing
Technical Information
| Parameter | Value |
|---|---|
| Filtration rating | 5μm |
| Application | Pressure and vacuum air circuits |
| Connection options | Φ4.0 mm / Φ6.0 mm |
| Compatible tubing | Matching PU tube size |
| 4 mm version reference dimensions | Approx. 55.3 × 23 × 33.4 mm |
| Recommended medium | Clean, dry air; other gases require compatibility confirmation |
Reference drawing for the Φ4.0 mm configuration. Please confirm the required connection and installation space before ordering.
Typical Applications
- Miniature diaphragm air pumps
- Miniature vacuum pump systems
- Gas sampling and analysis equipment
- Compact pneumatic control assemblies
- Laboratory automation and OEM devices
Selection & Installation Notes
Choose the connection size according to the tube outer diameter and confirm the allowable pressure drop at your actual working flow. For humid, corrosive, high-temperature, specialty-gas, or liquid applications, contact JSG to verify material and operating compatibility before use.
Request Selection Support
Send us your pump model, medium, target flow, pressure or vacuum, tube size, duty cycle, and estimated quantity. JSG can help confirm the appropriate filter connection and integration approach for your equipment.
