JSG03A/V 6V/12V/24V Compact DC Air & Vacuum Pump

$20.00

Options to discuss with our team

Function: Pressure, Vacuum
Voltage: 6V, 12V, 24V

Inquiry Only

Request a Quote

Ask about volume pricing, product selection and OEM options. Pricing and delivery are confirmed in your quote.

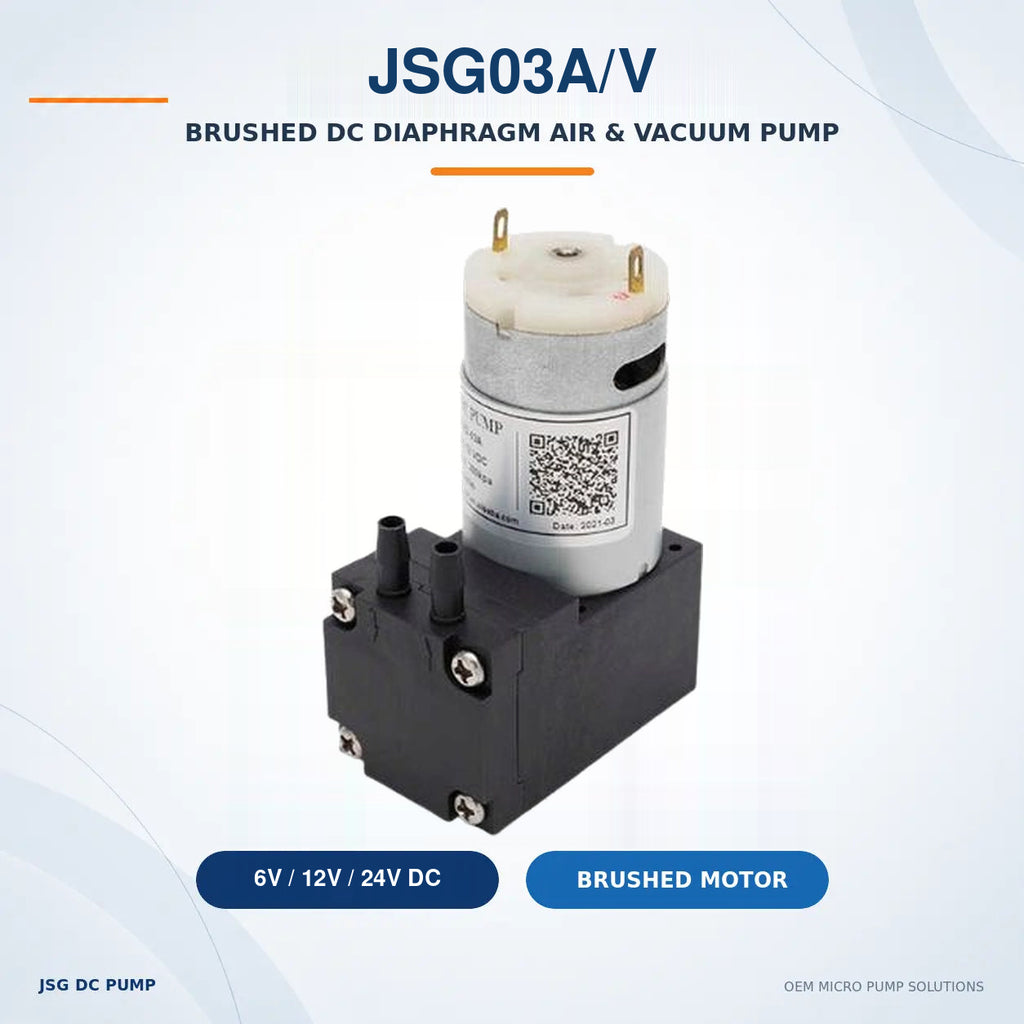

Compact brushed diaphragm pump for OEM air delivery, vacuum suction and clean-gas transfer. The JSG03A/V series offers separate pressure and vacuum versions with 6V, 12V or 24V DC options for portable instruments, beauty devices and small pneumatic equipment.

Series maximum flow: 3–6 L/min, depending on configuration.
Pressure version: JSG03A, 2–3 bar maximum pressure.
Vacuum version: JSG03V, −60 to −70 kPa maximum vacuum.
Compact body: approx. 76 × 49 × 30.4 mm; approx. 140 g.
Material options: EPDM / FKM, subject to gas compatibility and build confirmation.

Pressure & Vacuum Options

JSG03A – Pressure Type
For positive airflow, small inflation modules and compact pressure-control circuits.

JSG03V – Vacuum Type
For suction, gas sampling, air extraction and negative-pressure modules.

Choose the required function and rated voltage. Published ranges cover different configurations. Maximum flow, maximum pressure and maximum vacuum are separate operating points; confirm flow at your actual working pressure or vacuum.

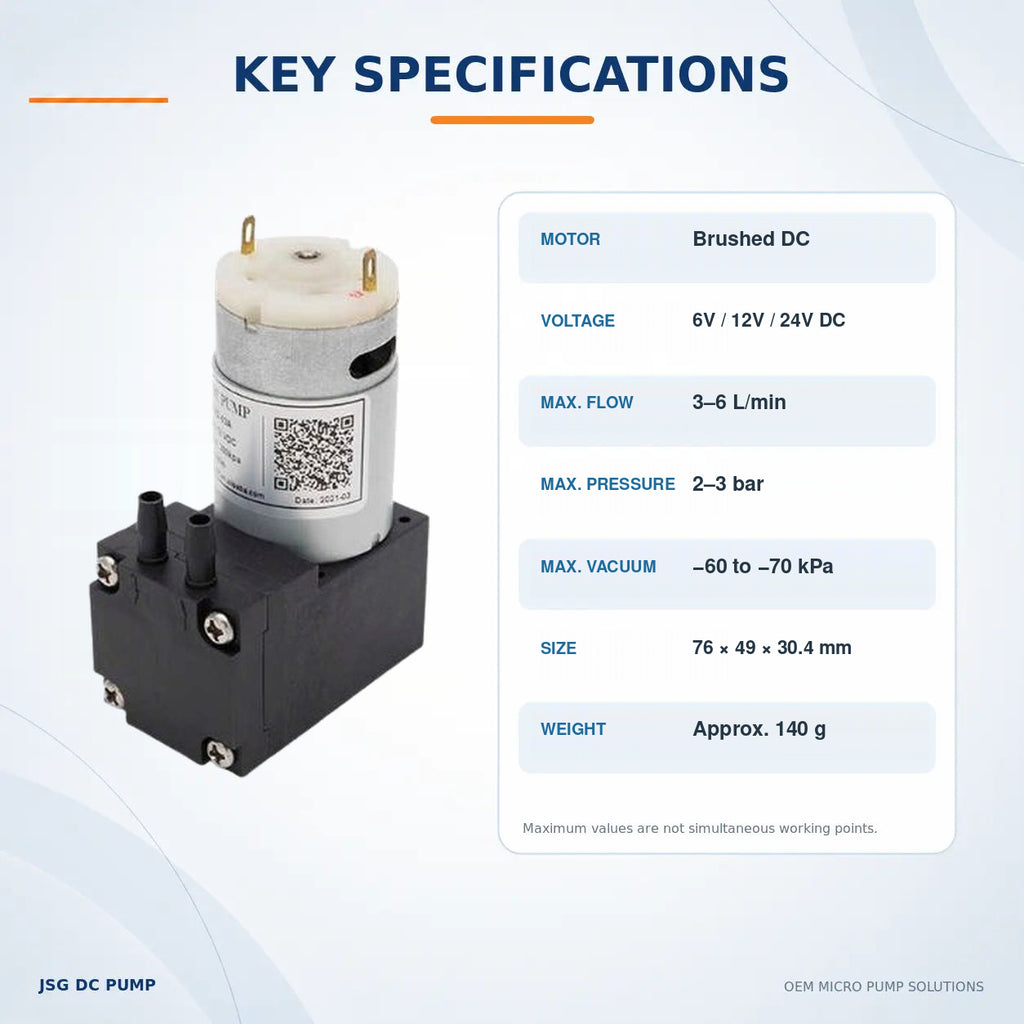

Specifications

Pressure Model	JSG03A (manufacturer reference: BD-03A)
Vacuum Model	JSG03V (manufacturer reference: BD-03V)
Pump Type	Brushed DC diaphragm air / vacuum pump
Rated Voltage Options	6V / 12V / 24V DC; select one rated voltage
Series Maximum Flow	3–6 L/min; configuration dependent
Maximum Pressure	2–3 bar, pressure version
Maximum Vacuum	−60 to −70 kPa, vacuum version
Power	7–12 W; confirm the selected build and load
Noise	50–65 dB reference; confirm measurement conditions
Life Expectancy	1,000 hours reference; depends on load and duty cycle
Approx. Dimensions	76 × 49 × 30.4 mm
Approx. Weight	140 g
Media	Air / compatible clean gas
Wetted Material Options	EPDM / FKM; confirm the selected diaphragm and valve build
Working Mode	Intermittent or continuous, depending on load and thermal validation

Dimensions and Installation

JSG03A/V brushed diaphragm pump dimensional drawing with 76 mm length, 49 mm height, pump head dimensions and air-port details

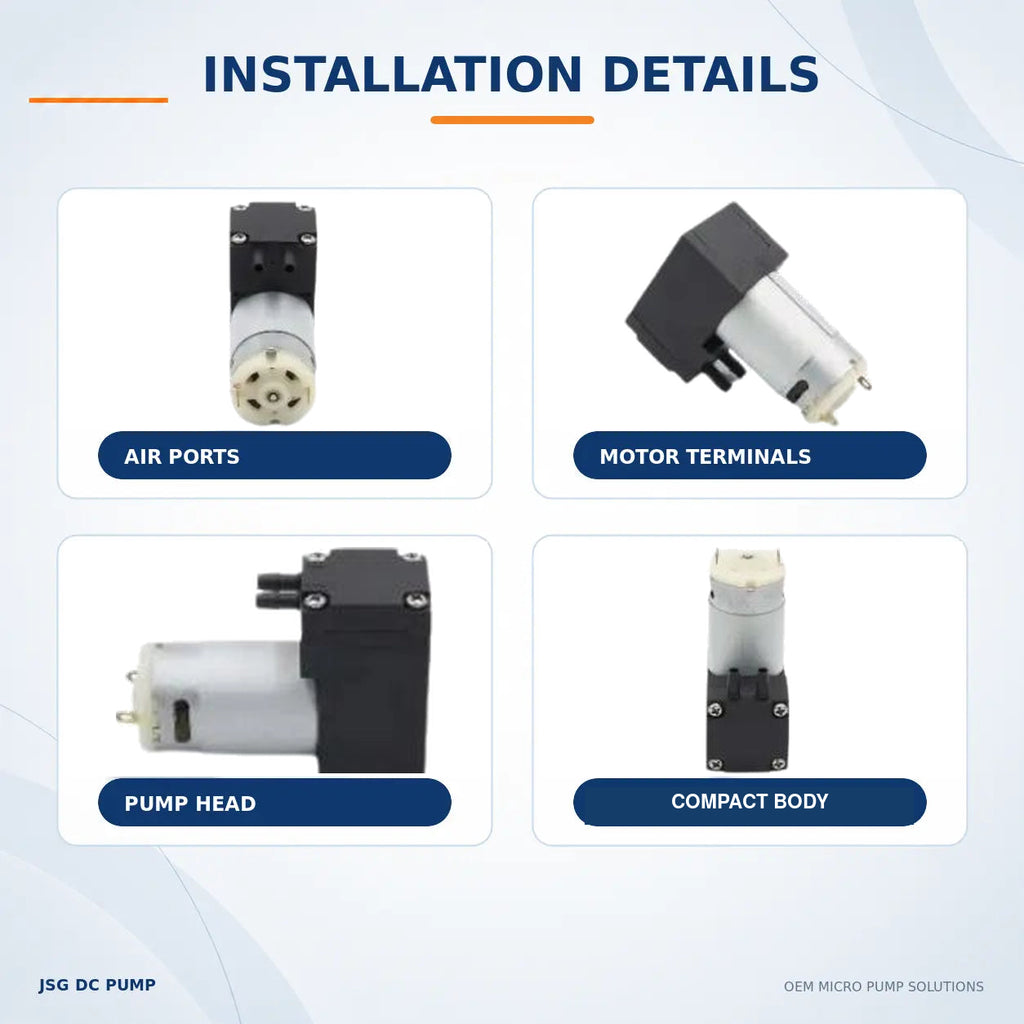

Check port direction, terminal access, mounting clearance and tubing bends against the complete drawing. Allow suitable vibration isolation and airflow around the motor.

Typical Applications

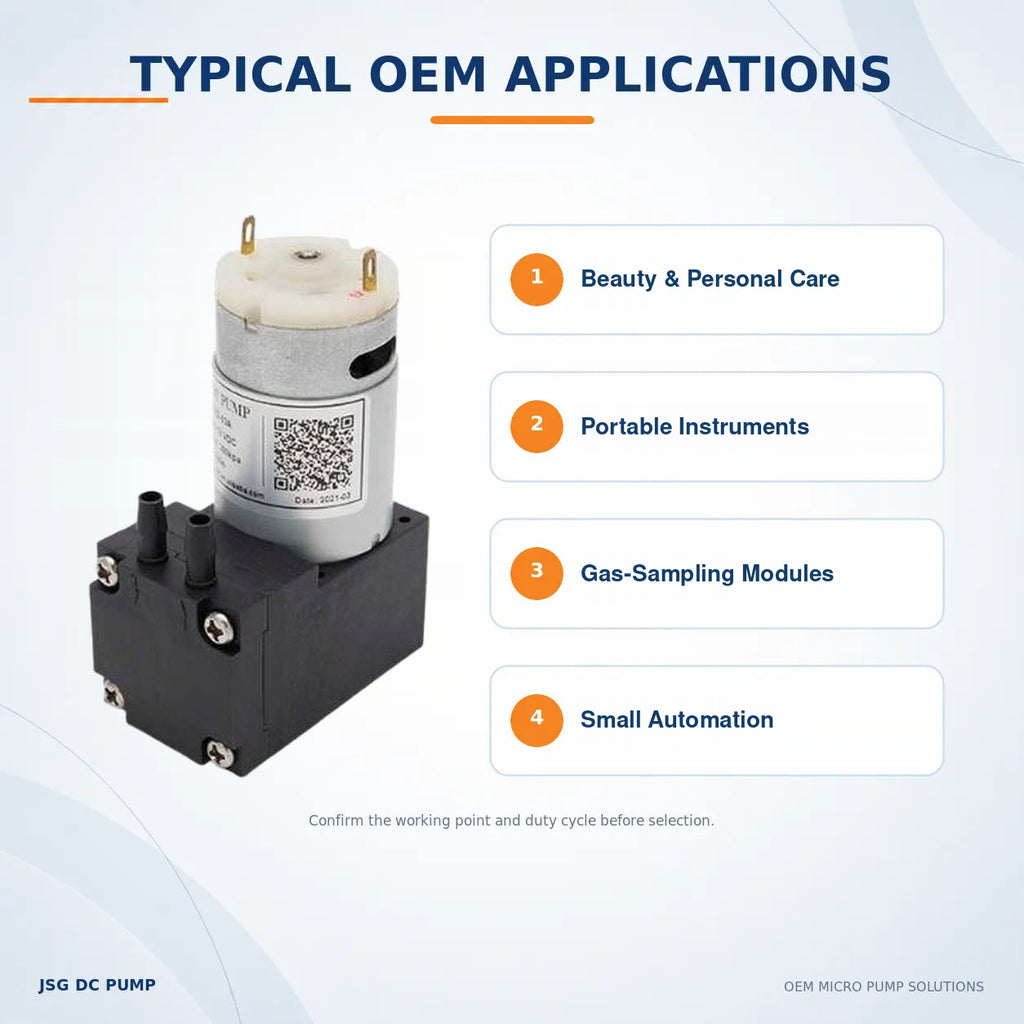

Beauty and personal-care devices, portable medical and laboratory instruments, vacuum sampling, small inflation systems and compact automation modules.

Important Note

For air and confirmed compatible gases. Not for liquid transfer. Review diaphragm, valve and seal compatibility if the gas path contains moisture, mist, oil vapor or chemical residue.

Tubing, filters, valves, leakage and supply voltage affect installed performance. Validate flow, startup, current, noise, temperature rise and duty cycle in the complete device before approving production.

Package Includes

1 × Selected JSG03A or JSG03V Pump

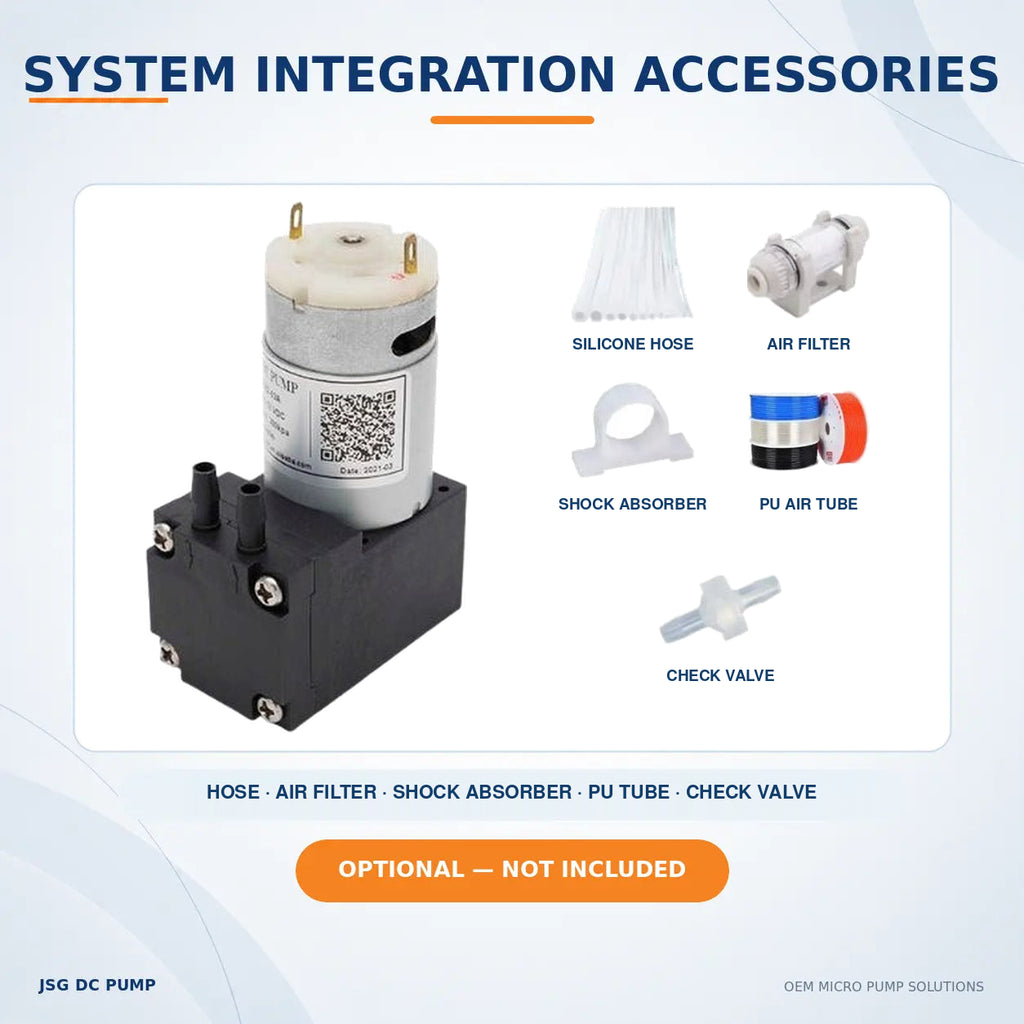

Select pressure or vacuum and 6V, 12V or 24V. Silicone hose, air filter, shock absorber, PU tubing, check valve and power supply are not included unless agreed separately.
