JSG03AB/VB 6V/12V/24V Brushless Air & Vacuum Pump

$35.00

Options to discuss with our team

Function: Pressure, Vacuum
Voltage: 6V, 12V, 24V

Inquiry Only

Request a Quote

Ask about volume pricing, product selection and OEM options. Pricing and delivery are confirmed in your quote.

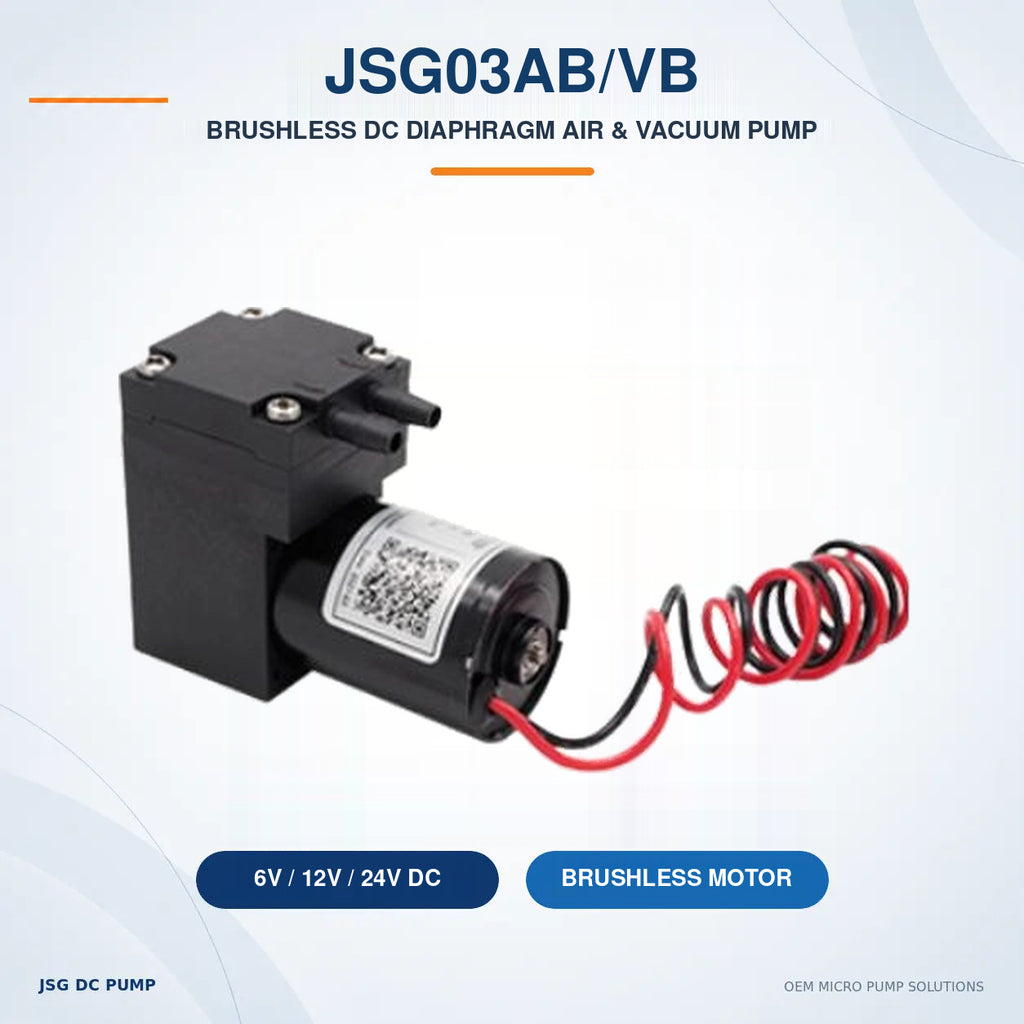

Compact brushless diaphragm pump for OEM air delivery, vacuum suction and clean-gas transfer. The JSG03AB/VB series offers pressure or vacuum versions and separate 6V, 12V and 24V configurations for instrument gas paths and compact pneumatic equipment.

Series maximum flow: up to 6 L/min, depending on configuration.
Pressure version: JSG03AB, up to 3 bar maximum pressure.
Vacuum version: JSG03VB, down to −70 kPa maximum vacuum.
Compact body: approx. 64 × 49 × 30.4 mm; approx. 120 g.
Material options: EPDM / FKM, subject to gas compatibility and build confirmation.

Pressure & Vacuum Options

JSG03AB – Pressure Type
For positive airflow, compact pressure-control modules and small pneumatic gas-delivery circuits.

JSG03VB – Vacuum Type
For suction, air extraction, gas sampling and negative-pressure modules.

Choose the function and rated voltage required by your equipment. Maximum flow, maximum pressure and maximum vacuum are separate operating points; confirm the required flow at your actual working pressure or vacuum.

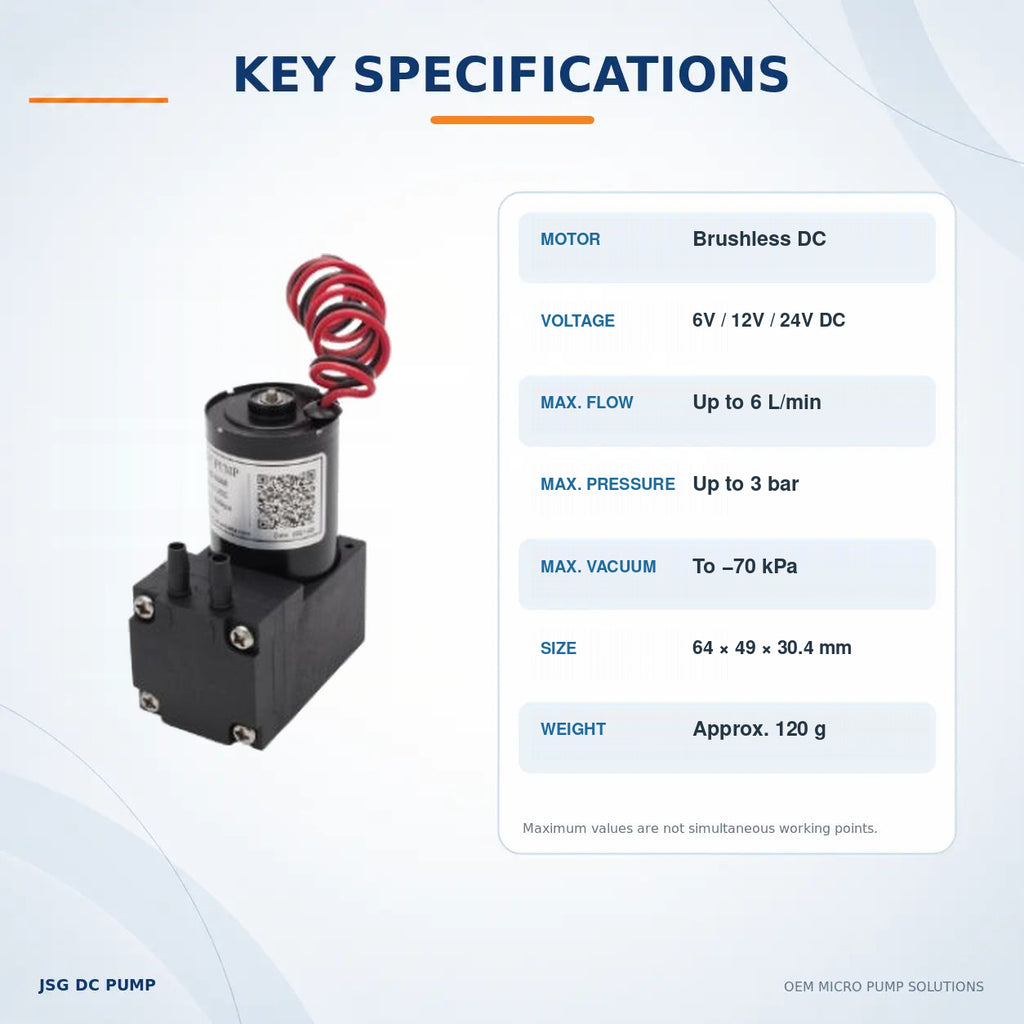

Specifications

Pressure Model	JSG03AB (manufacturer reference: BD-03AB)
Vacuum Model	JSG03VB (manufacturer reference: BD-03VB)
Pump Type	Brushless DC diaphragm air / vacuum pump
Rated Voltage Options	6V / 12V / 24V DC; select one rated voltage
Series Maximum Flow	Up to 6 L/min; confirm the selected configuration
Maximum Pressure	Up to 3 bar, pressure version
Maximum Vacuum	Down to −70 kPa, vacuum version
Approx. Dimensions	64 × 49 × 30.4 mm
Approx. Weight	120 g
Media	Air / compatible clean gas
Wetted Material Options	EPDM / FKM; confirm the selected diaphragm and valve build
Working Mode	Intermittent or continuous, subject to load and thermal validation

Dimensions and Installation

JSG03AB/VB brushless diaphragm pump dimensional drawing with 64 mm length, 49 mm height, 30.4 mm pump head width and mounting details

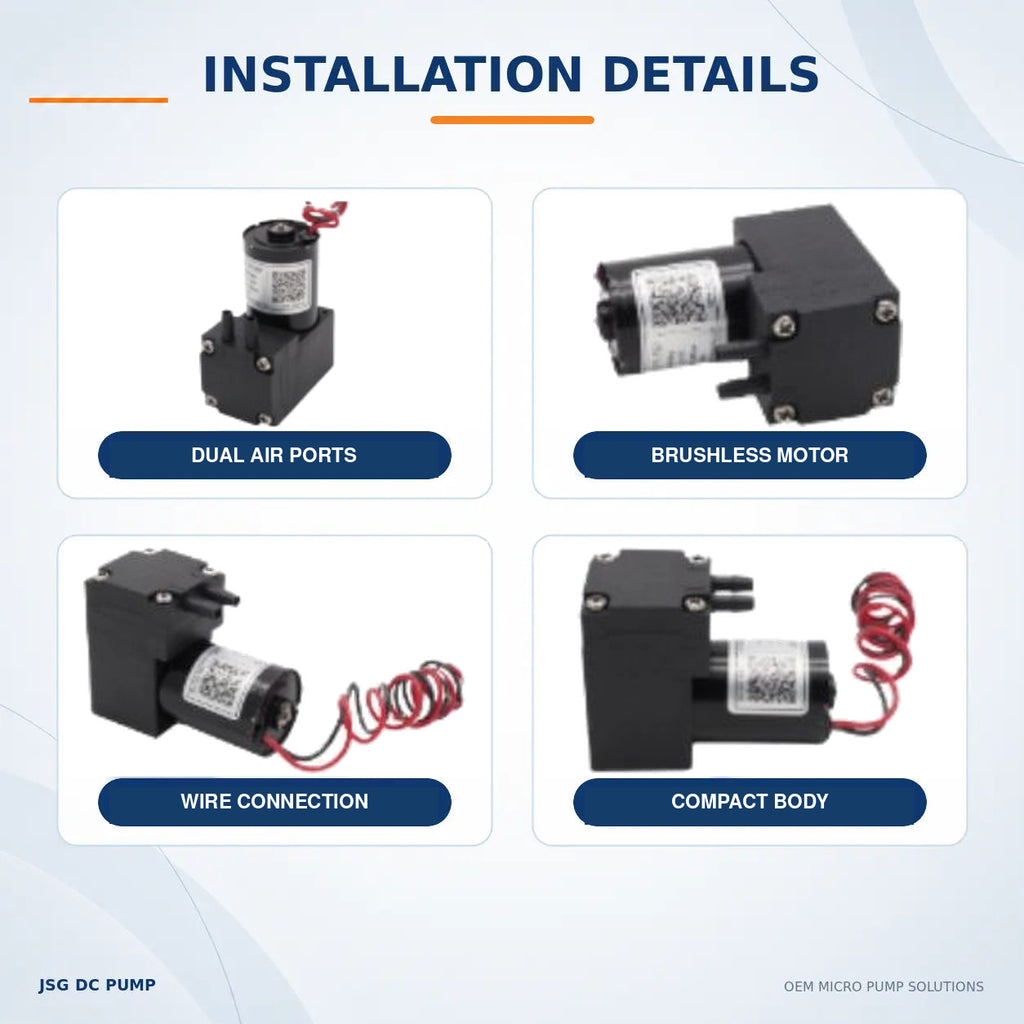

Confirm port direction, mounting clearance, wire routing and tubing bends against the complete drawing. Allow suitable vibration isolation and airflow around the motor.

Typical Applications

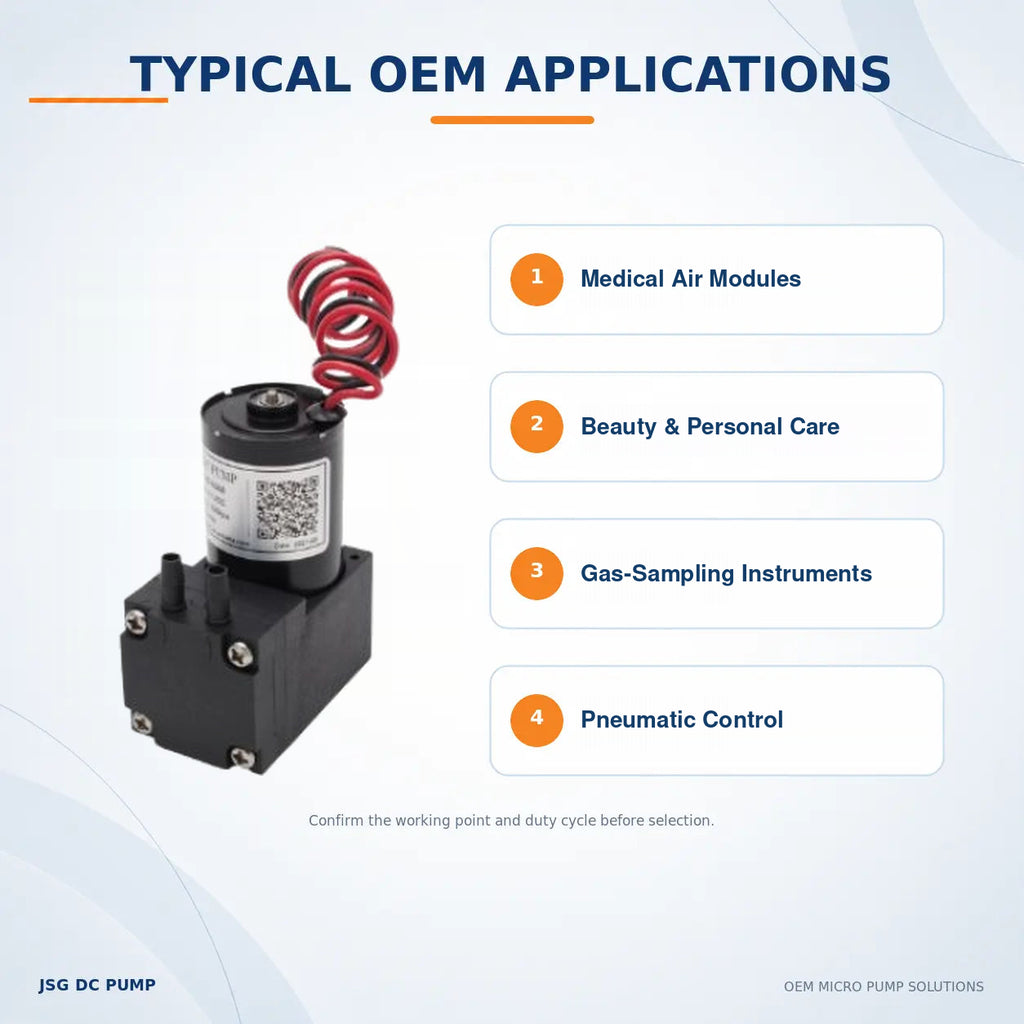

Medical equipment air and vacuum modules, beauty and personal-care devices, gas-sampling instruments and compact pneumatic control systems.

Important Note

For air and confirmed compatible gases. Not for liquid transfer. Review diaphragm, valve and seal materials if the gas path may contain moisture, mist, oil vapor or chemical residue.

Tubing, filters, valves, leakage and supply voltage affect installed flow and response. Validate the required working point, startup, current, noise, temperature rise and duty cycle in the complete device before approving production.

Package Includes

1 × Selected JSG03AB or JSG03VB Pump

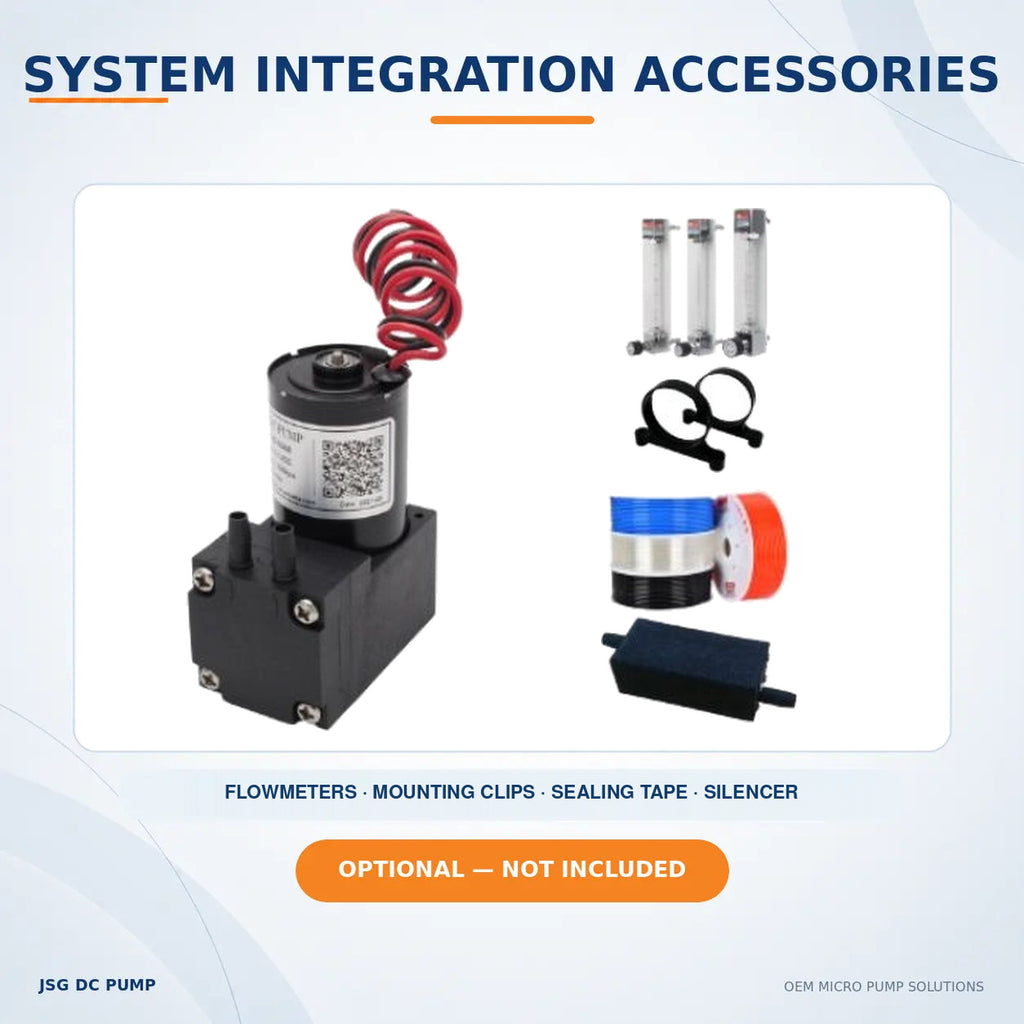

Select pressure or vacuum and 6V, 12V or 24V. Flowmeters, tubing, mounting clips, sealing tape, silencers and power supply are not included unless agreed separately.
