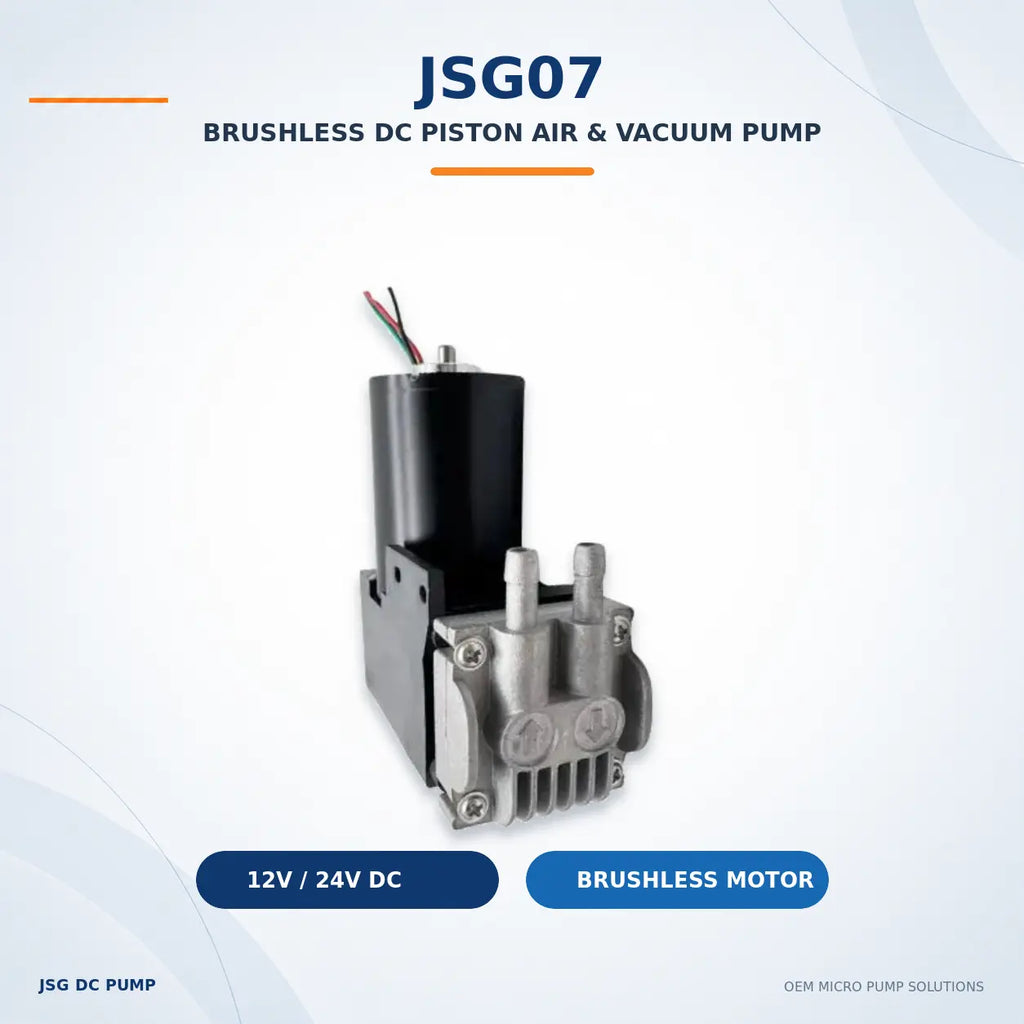

JSG07 12V/24V Brushless DC Piston Air & Vacuum Pump

$50.00

Options to discuss with our team

Pump Type: Pressure – JSG07AB-M, Vacuum – JSG07VB-M
Voltage: 12V DC, 24V DC

Inquiry Only

Request a Quote

Ask about volume pricing, product selection and OEM options. Pricing and delivery are confirmed in your quote.

Compact brushless piston pump for gas sampling, vacuum systems, pneumatic equipment, and OEM applications.

Get More from Your Pump Inquiry

Planning a batch order or OEM project? Request volume pricing and pump selection advice.

Free pump selection guidance
Volume pricing review
OEM customization options

Order by inquiry: request a quote before payment. We will confirm the product configuration, availability, order pricing and freight for your destination.

Get My Project Quote

Start with your application. Share the flow, working pressure or vacuum, and voltage you know; estimates are welcome. Add your destination country and postcode, plus an estimated quantity if available.

Email emily@dc-pump.com

Pressure & Vacuum Options

JSG07AB-M – Pressure Type
For positive pressure, air delivery, gas transfer, and pneumatic systems. Max flow: 15–40 L/min. Max pressure: 4.5–6.5 bar.

JSG07VB-M – Vacuum Type
For vacuum suction, gas sampling, extraction, and vacuum systems. Max flow: 15–40 L/min. Max vacuum: -80 to -85 kPa.

JSG07 series piston pump flow curves for vacuum and pressure operation

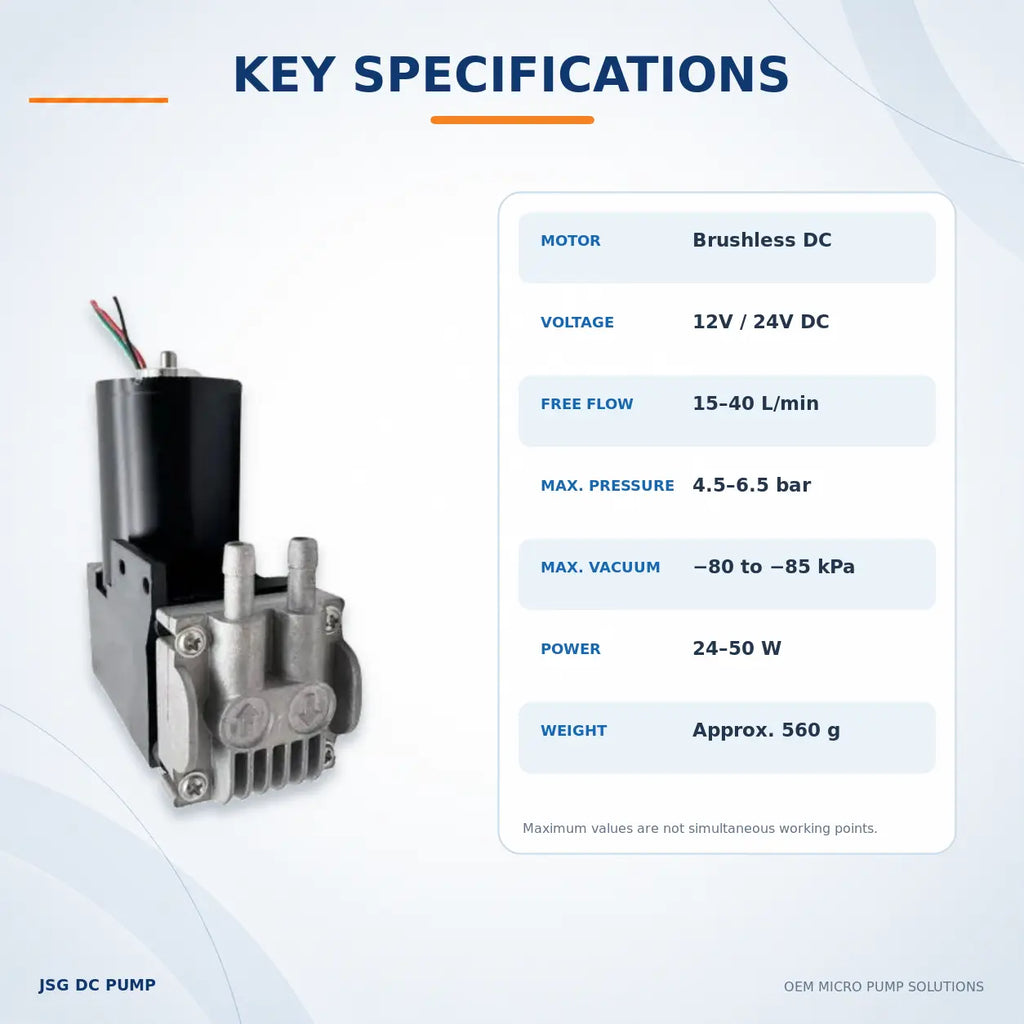

Specifications

Motor	Brushless DC
Power	24–50 W
Size	Approx. 107 × 85.5 × 43 mm
Weight	Approx. 560 g
Media	Air / Clean Gas
Service Life	Approx. 3,000 h

JSG07 piston pump dimensional drawing with port and mounting dimensions

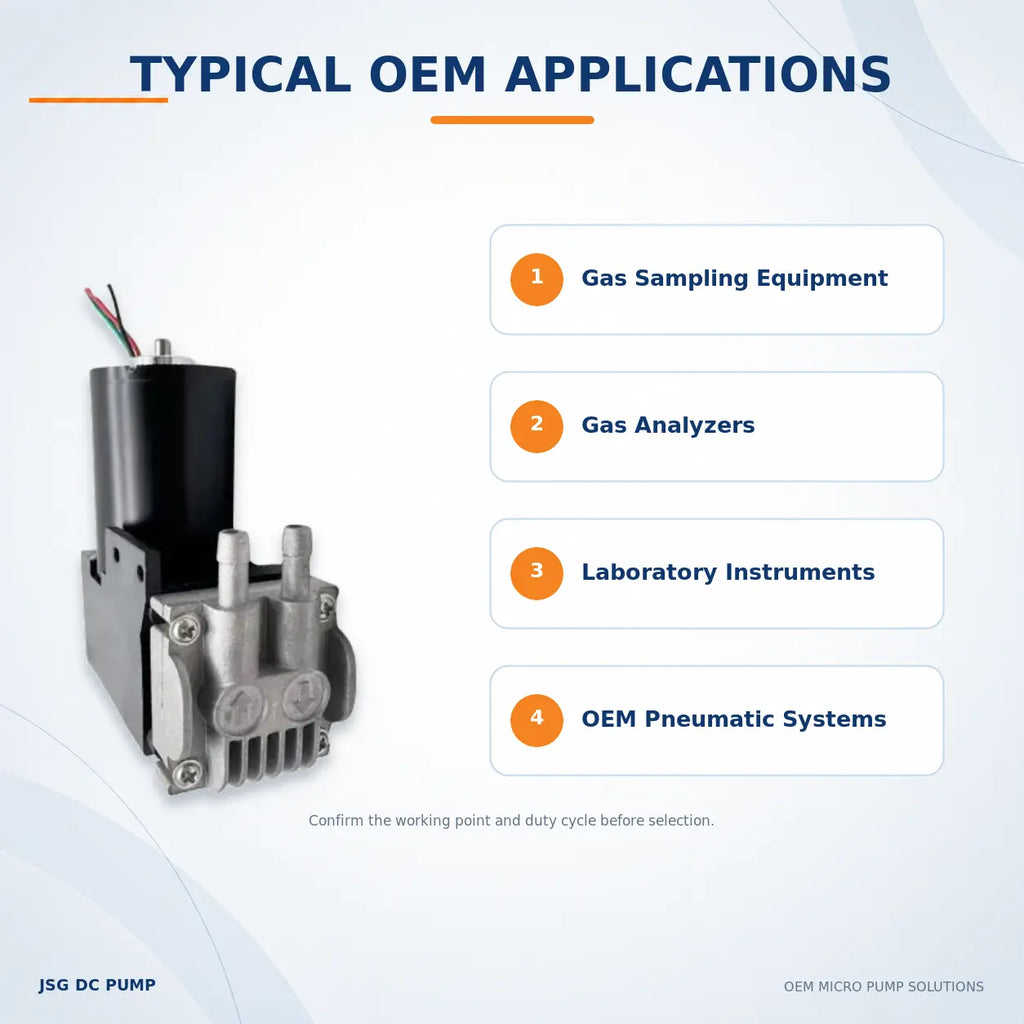

Typical Applications

Gas sampling equipment, gas analyzers, laboratory instruments, vacuum equipment, pneumatic systems, testing equipment, and OEM devices.

Important Note

Maximum flow, pressure, and vacuum are boundary values and are not simultaneous operating points. Actual performance depends on tubing, filters, valves, system resistance, voltage, and operating conditions.
