JSG04AB/VB 6V/12V/24V Brushless Air & Vacuum Pump

$35.00

Function Pressure Vacuum

Voltage 6V 12V 24V

Standard items can be purchased online where shipping is available. For bulk or OEM orders, request a quote.

Request a Quote

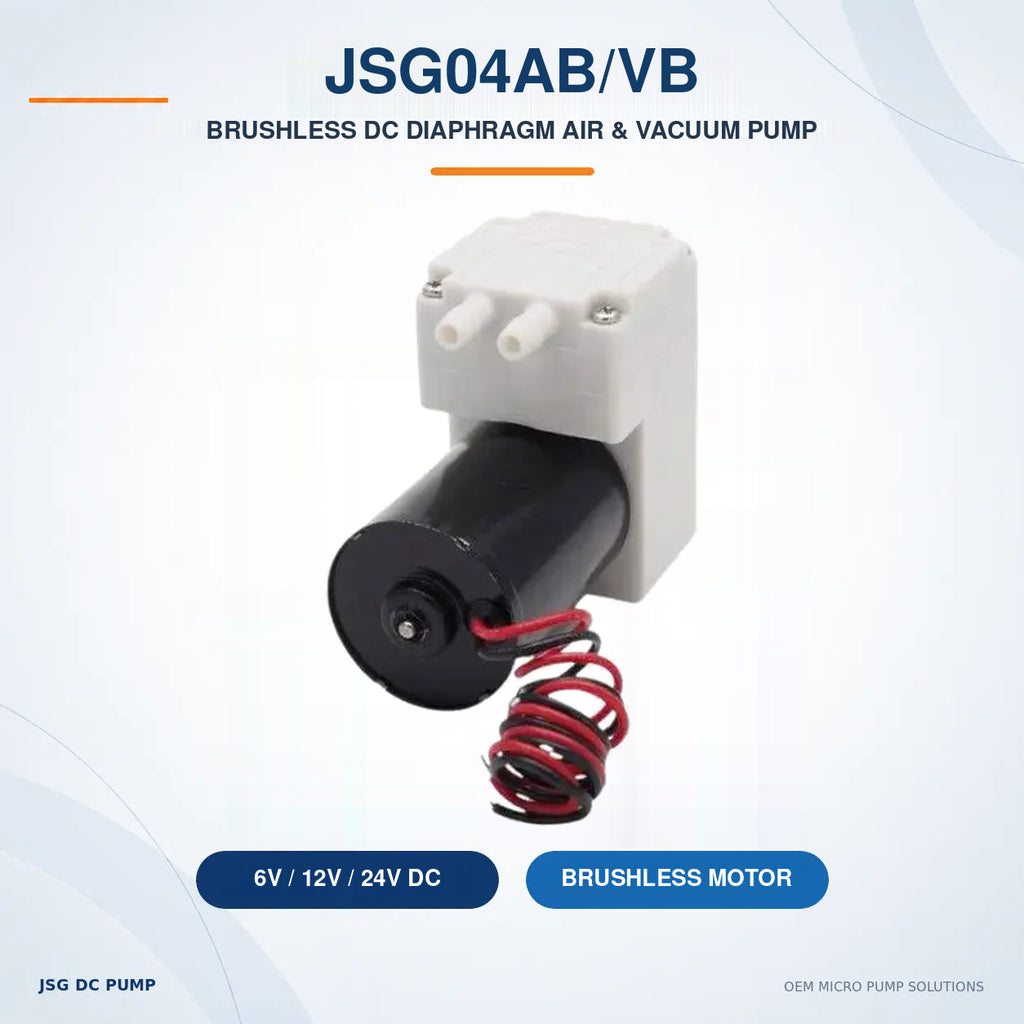

Compact brushless diaphragm pump for OEM air delivery, vacuum suction and clean-gas transfer. The JSG04AB/VB series offers separate pressure and vacuum versions with 6V, 12V or 24V DC options for medical instruments, beauty devices and compact pneumatic equipment.

Series maximum flow: 11–20 L/min, depending on configuration.
Pressure version: JSG04AB, 2.5–3.5 bar maximum pressure.
Vacuum version: JSG04VB, −75 to −80 kPa maximum vacuum.
Compact body: approx. 92.3 × 72 × 52 mm; approx. 305 g.
Material options: EPDM / FKM, subject to gas compatibility and build confirmation.

Pressure & Vacuum Options

JSG04AB – Pressure Type
For positive airflow, pneumatic support, compact inflation modules and pressure-control circuits.

JSG04VB – Vacuum Type
For suction, air extraction, gas sampling, vacuum holding and negative-pressure modules.

Choose the required function and rated voltage. Published ranges cover different configurations. Maximum flow, maximum pressure and maximum vacuum are separate operating points; confirm available flow at your actual working pressure or vacuum.

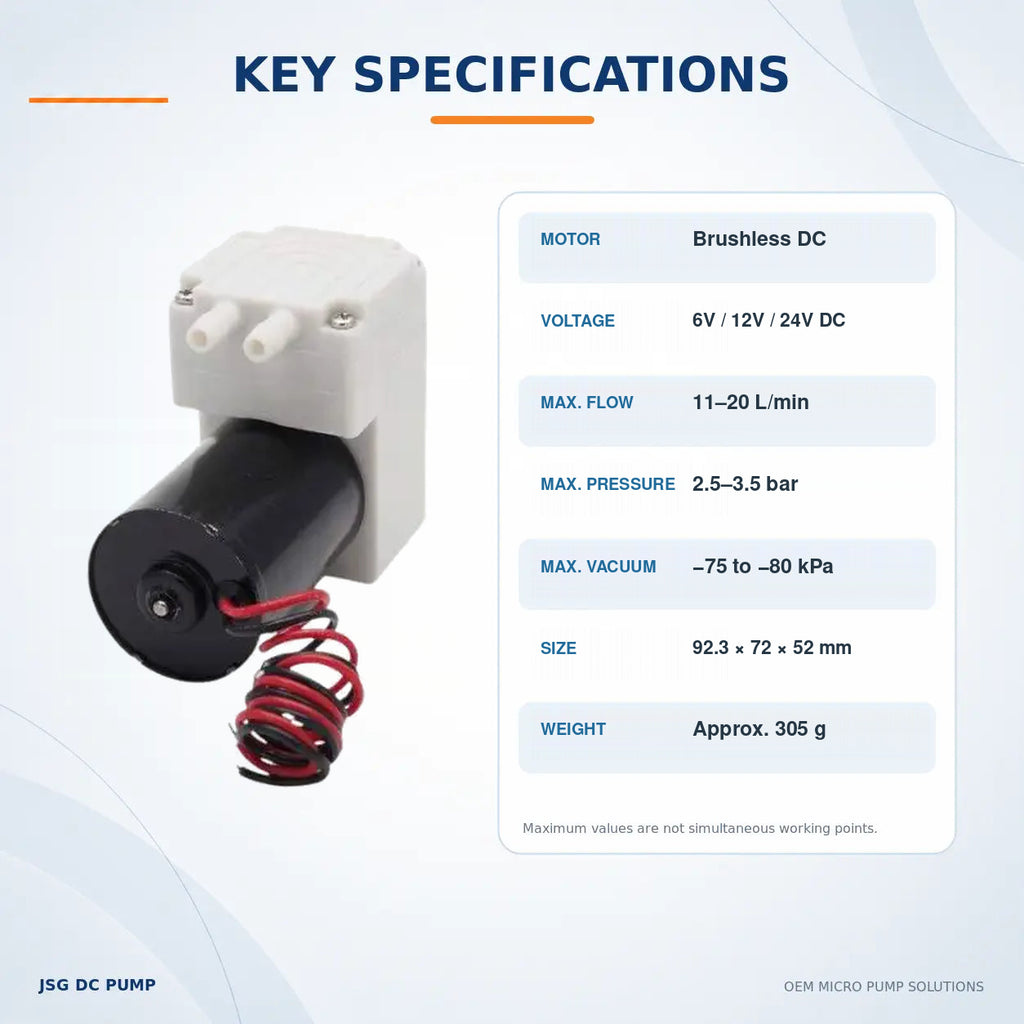

Specifications

Pressure Model	JSG04AB
Vacuum Model	JSG04VB
Pump Type	Brushless DC diaphragm air / vacuum pump
Rated Voltage Options	6V / 12V / 24V DC; select one rated voltage
Series Maximum Flow	11–20 L/min; configuration dependent
Maximum Pressure	2.5–3.5 bar, pressure version
Maximum Vacuum	−75 to −80 kPa, vacuum version
Noise	50–65 dB at 30 cm; depends on voltage, load and installation
Approx. Dimensions	92.3 × 72 × 52 mm; check complete installation clearances
Approx. Weight	305 g
Hose Ports	Approx. 6.5 mm OD / 3.5 mm bore; confirm tubing fit
Media	Air / compatible clean gas
Wetted Material Options	EPDM / FKM; confirm the selected diaphragm and valve build
Working Mode	Intermittent or continuous, depending on load and thermal validation

Dimensions and Installation

JSG04AB/VB brushless diaphragm pump dimensional drawing showing 92.3 mm length, side mounting points, wire routing and air-port dimensions

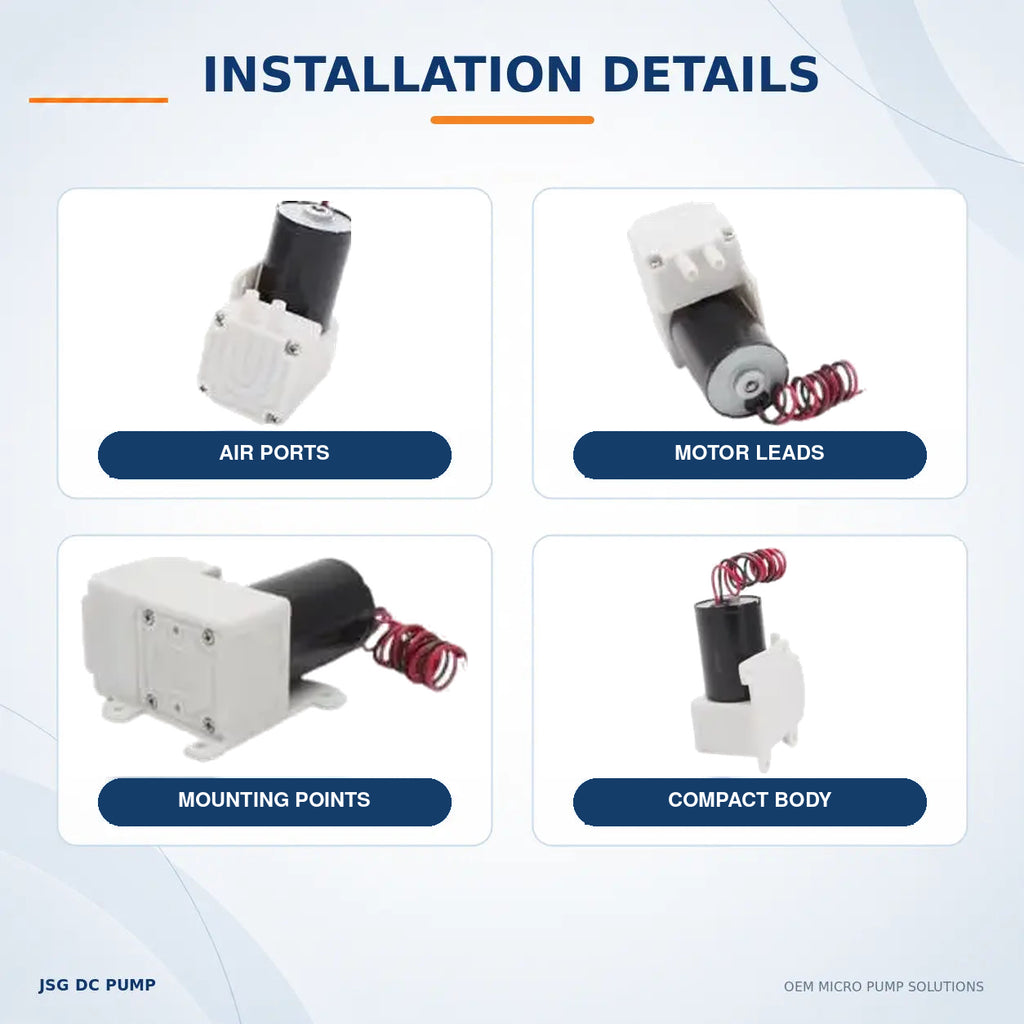

Check the side mounting points, port direction, lead-wire clearance and tubing bends against the complete drawing. Allow vibration isolation and airflow around the motor.

Typical Applications

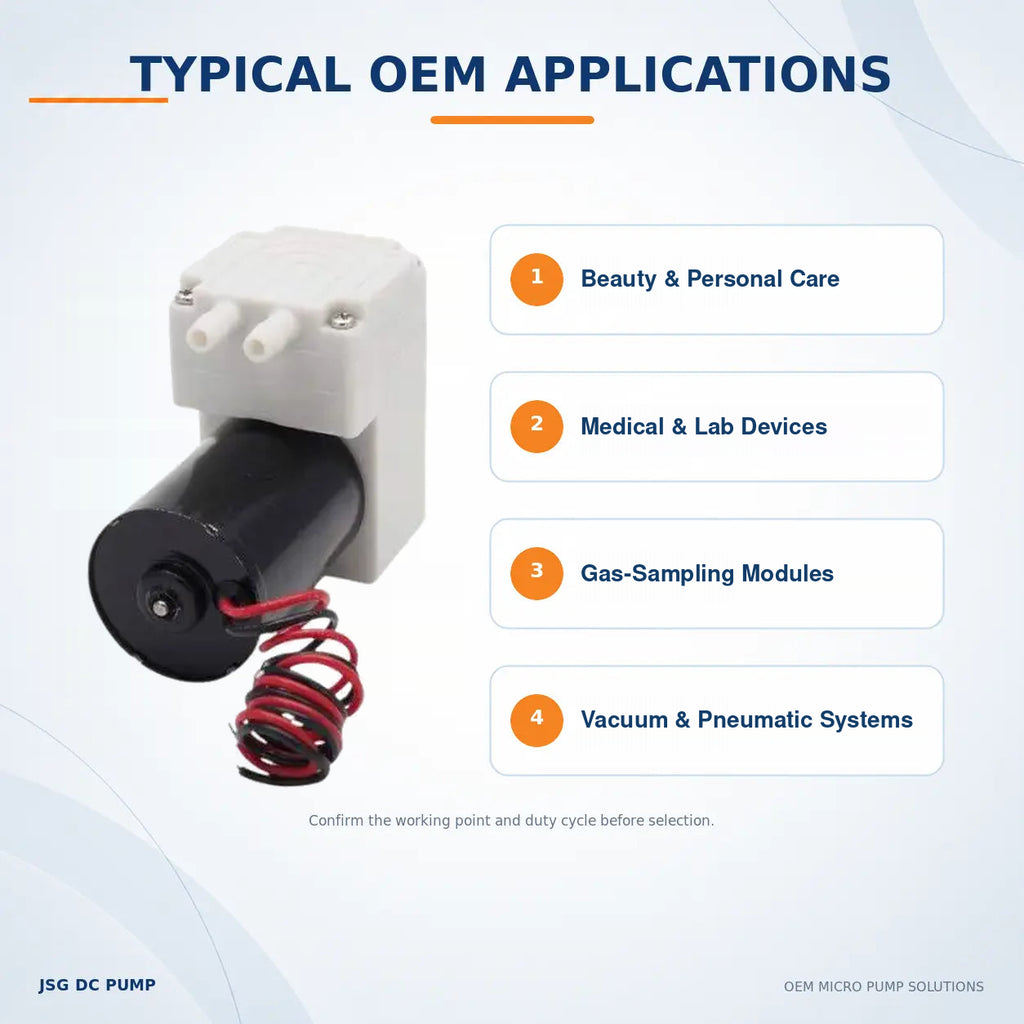

Beauty and personal-care devices, medical and laboratory instruments, gas-sampling modules, vacuum fixtures and compact pneumatic equipment.

Important Note

For air and confirmed compatible gases. Not for liquid transfer. Review diaphragm, valve and seal compatibility if the gas path contains moisture, mist, oil vapor or chemical residue.

Tubing, filters, valves, leakage and supply voltage affect installed performance. Validate flow, startup, current, noise, temperature rise and duty cycle in the complete device before approving production.

Package Includes

1 × Selected JSG04AB or JSG04VB Pump

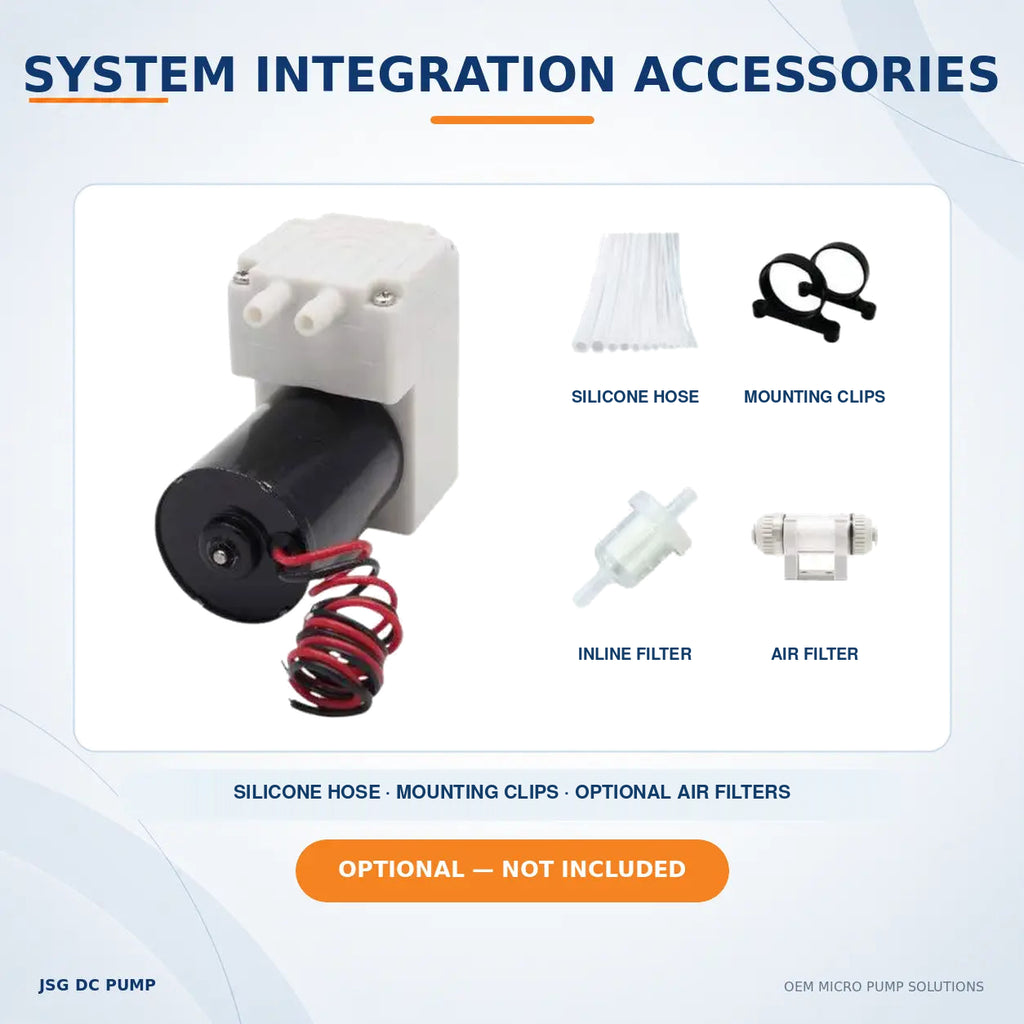

Select pressure or vacuum and 6V, 12V or 24V. Silicone hose, air filters, mounting clips, controller and power supply are not included unless agreed separately.
