Choosing between a diaphragm pump and a piston pump is one of the most common decisions engineers face when designing a fluid-handling system. Both move liquids and gases in precise, controlled amounts, and both come in compact sizes suited to OEM products. But they work differently, and those differences show up in pressure capability, fluid compatibility, lifespan, and cost.
Picking the wrong type can mean premature failures, leaks, or a pump that can't meet your performance targets. This guide compares the two side by side so you can narrow down the right fit before you start sourcing.
How Diaphragm Pumps Work
A diaphragm pump uses a flexible membrane, typically made of rubber, EPDM, FKM, or PTFE. A motor drives the membrane back and forth, changing the volume of the pump chamber. On the suction stroke, fluid is drawn in through an inlet valve. On the discharge stroke, the membrane pushes it out through an outlet valve.
The key feature is that the fluid never touches the moving mechanical parts. It only contacts the membrane and the pump head, so the pump is inherently oil-free and leak-resistant. This is why diaphragm pumps are so common in medical, analytical, and food-grade applications.
How Piston Pumps Work
A piston pump uses a piston that moves back and forth inside a cylinder. On the suction stroke, the piston retracts and draws fluid into the cylinder. On the discharge stroke, it pushes the fluid out under pressure. A seal between the piston and the cylinder wall keeps the fluid from slipping past.
Because the piston displaces a well-defined volume with each stroke, piston pumps can deliver higher pressure and more consistent flow output. That makes them a strong choice for demanding applications.

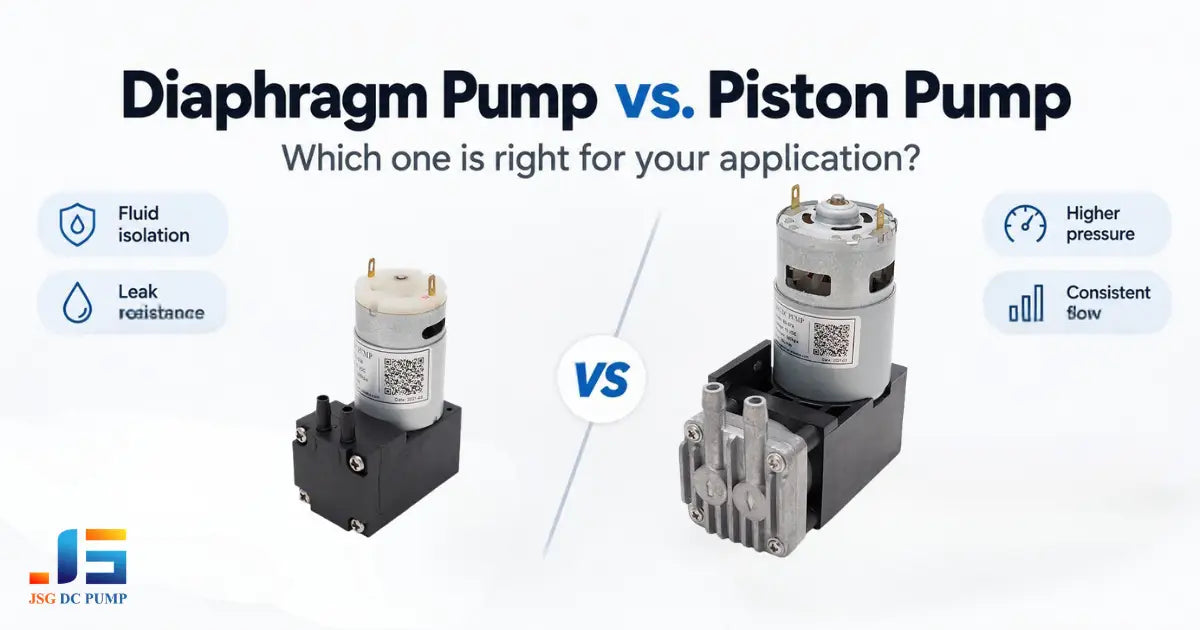

Side-by-Side Comparison
| Factor | Diaphragm Pump | Piston Pump |
|---|---|---|
| Pressure | Low to medium; high-pressure designs exist | Generally higher, well suited to demanding pressure requirements |
| Flow control | Good, with some pulsation | Precise and consistent |
| Fluid isolation | Fluid is isolated from moving parts | Fluid contacts the piston and seal |
| Leakage risk | Very low | Depends on seal condition over time |
| Chemical compatibility | Wide range through diaphragm and head material options | Depends on seal and cylinder materials |
| Dry running | Many designs tolerate it | Often limited, depending on seal design |
| Maintenance | Typically diaphragm wear is the main service item | Seal and piston wear are the main service items |
| Typical cost | Often lower for general-purpose use | Can be higher, especially for high-pressure designs |
These are general tendencies. Actual performance depends on the specific design, materials, and operating conditions, so always confirm against the datasheet or a sample.
When to Choose a Diaphragm Pump
A diaphragm pump is usually the better fit when:
- Fluid purity or leak-free operation is critical, as in medical devices, laboratory equipment, and food or beverage systems
- You're handling aggressive or sensitive fluids, where you need to match the diaphragm and head material to the chemistry
- The pump may occasionally run dry, or the fluid may carry small particles
- Cost sensitivity matters and moderate pressure is enough
When to Choose a Piston Pump
A piston pump is usually the better fit when:
- You need higher pressure than a typical diaphragm design can deliver
- Flow consistency and metering accuracy are top priorities
- The application is continuous or high-duty, where efficiency and stable output matter
- The fluid is clean and compatible with the piston and seal materials
Key Questions to Ask Before You Decide
- What pressure and flow do you actually need? Define working pressure, not just peak pressure.
- What fluid are you moving? Consider chemical compatibility, viscosity, and whether it contains particles.
- How will the pump run? Continuous duty, intermittent use, or occasional dry running all affect the choice.
- What are your size, noise, and power limits? Battery-powered or space-constrained designs may rule out some options.
- What lifespan and maintenance model does your product require? A sealed consumer product has very different needs from serviceable industrial equipment.
When Off-the-Shelf Isn't Enough
Sometimes neither a standard diaphragm pump nor a standard piston pump quite fits, whether the issue is a specific flow and pressure combination, an unusual footprint, or particular materials. In those cases a customized pump, developed around your application from the start, often performs better and avoids design compromises elsewhere in your product.
Compare the Available JSG Pump Families
Our current piston pump range handles air and compatible clean gases. For diaphragm options, compare air and vacuum pumps with the separate clean-water liquid pump range. Share your working point and duty cycle for model-specific selection.
Final Thoughts
There's no universally better pump type, only the better fit for your application. Diaphragm pumps offer fluid isolation, chemical flexibility, and low leakage risk. Piston pumps offer higher pressure and consistent output. Start from your pressure, flow, fluid, and duty-cycle requirements, and the right choice usually becomes clear.
